Part

General

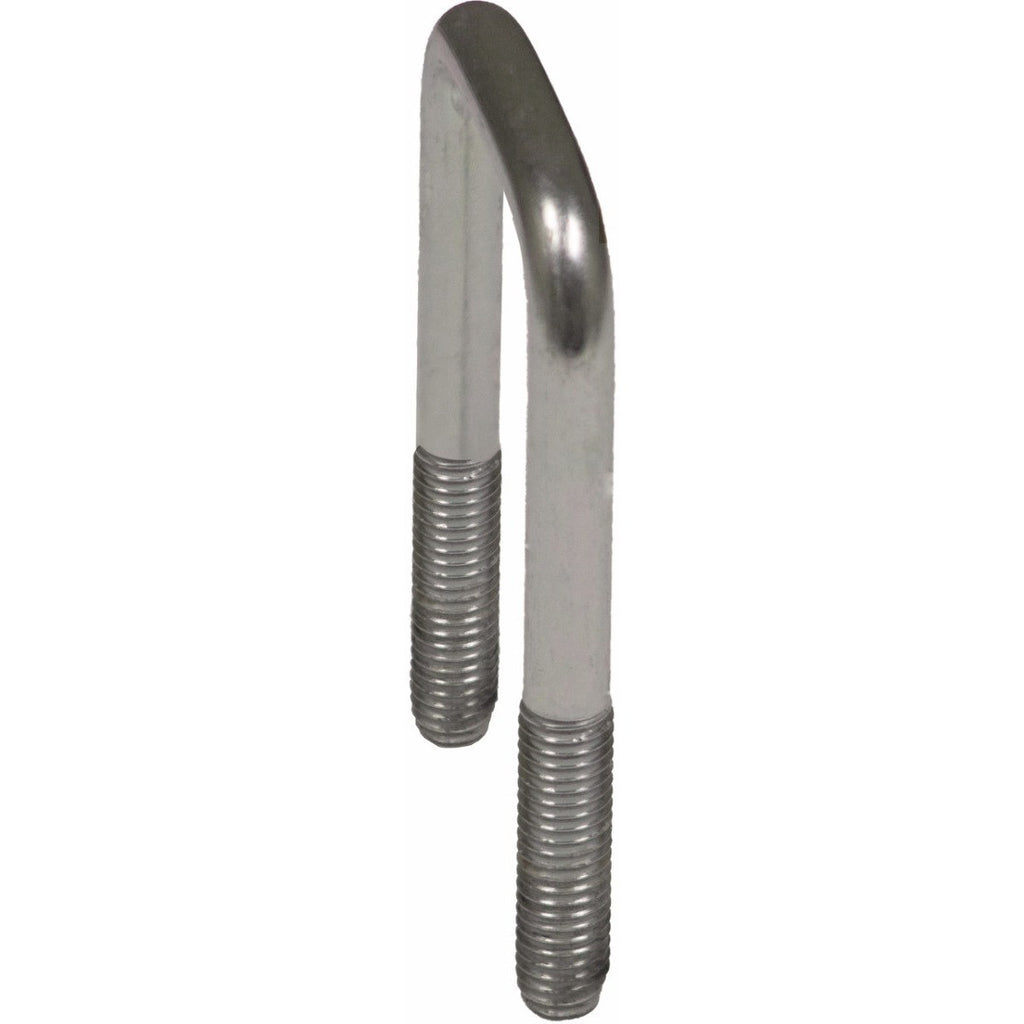

1/2"-13 x 2.06" x 4.31" Zinc U-Bolt

This item is part of the BATIE190Z Tie Plate Kit used to secure 5-Leaf Slipper Springs (1,250 lb) to 2" Square Black Powder Coated Axle Tubing. These can also be used with a Tie Down 7000# Zinc Axle Tie Plate.

TIE DOWN MODEL: #84404Z

MODEL: CFAXLE-UBLT(2.0SQ-Z)

Used on

General

1/2″-20 Lug Nut (Set of 5)

These are used for mounting tires on all trailer models to 1 1/2"-20 Threaded Stud.

MODEL: CFNUTLUG

Used on

ALL COM-FAB TRAILER MODELS WITH SILVER E-COAT OR GALVANIZED WHEELS

General

1000 lb Black Powder Coated PWC Trailer Axle w/ Hubs and Springs

*NOTE: if your trailer is older than 2006, call before ordering to ensure you receive the correct axle.*

Materials Include:

1 - 44.5" x 1.5" x 1.5" x 11 Gauge Black Powder Coated Axle Tubing

2 - Black Powder Coated 5-Bolt Hub Assembly

2 - 2-Leaf Slipper Spring (550 lb)

1 - Zinc Tie Plate Kit

This item is mounted to the PWT-800B with a Black Powder Coated Axle Mounting Kit.

MODEL: CFAXLE1000B

Specifications

Tubing: 1.5" Black Powder Coated Square Axle

Load Rating: 1000 lb

Hub Face: 50.5"

Spring Center: 41.188"

Overall Length: 56"

Bearing Size: 1-1/16"

Used on

PWT-800B

General

1000 lb Galvanized PWC Trailer Axle w/ Hubs and Springs

*NOTE: if your trailer is older than 2006, call before ordering to ensure you receive the correct axle.*

Materials Include:

1 - 44.5" x 1.5" x 1.5" x 11 Gauge Galvanized Axle Tubing

2 - Galvanized 5-Bolt Hub Assembly

2 - 2-Leaf Slipper Spring (550 lb)

1 - Zinc Tie Plate Kit

This item is mounted to the PWT-800G, and all Jon Boat Trailer models with a Galvanized Axle Mounting Kit.

MODEL: CFAXLE1000G

Specifications

Tubing: 1.5" Galvanized Square Axle

Load Rating: 1000 lb

Hub Face: 50.5"

Spring Center: 41.188"

Overall Length: 56"

Bearing Size: 1-1/16"

Used on

General

1500 lb Black Powder Coated PWC Trailer 545 Axle w/ Hubs and Springs

*NOTE: if your trailer is older than 2006, call before ordering to ensure you receive the correct axle.*

Materials Include:

1 - 44.5" x 1.5" x 1.5" x 11 Gauge Black Powder Coated Axle Tubing

2 - Black Powder Coated 5-Bolt Hub Assembly

2 - 3-Leaf Slipper Springs (750 lb)

1 - Zinc Tie Plate Kit

This item is mounted to the PWT-1000B, and the PWT-1100B with a Black Powder Coated Axle Mounting Kit.

MODEL: CFAXLE1500B

Specifications

Tubing: 1.5" Black Powder Coated Square Axle

Load Rating: 1500 lb

Hub Face: 50.5"

Spring Center: 41.19"

Overall Length: 56"

Bearing Size: 1-1/16"

Used on

General

1500 lb Galvanized PWC Trailer Axle w/ 545 Hubs and Springs

*NOTE: If your trailer is older than 2006, call before ordering to ensure you receive the correct axle*

Materials Include:

1 - 44.5" x 1.5" x 1.5" x 11 Gauge Galvanized Axle Tubing

2 - Galvanized 5-Bolt Hub Assembly

2 - 3-Leaf Slipper Springs (750 lb)

1 - Galvanized Tie Plate Kit

This item is mounted to the PWT-1000G, and PWT-1100G trailer models with a Galvanized Axle Mounting Kit.

MODEL: CFAXLE1500G

Specifications

Tubing: 1.5" Galvanized Square Axle

Load Rating: 1500 lb

Hub Face: 50.5"

Spring Center: 41.188"

Overall Length: 56"

Bearing Size: 1-1/16"

Used on

General

2-Leaf Slipper Springs w/ Radius 550 lb Maximum Capacity (Qty 2)

This item is mounted to the 1000 lb Galvanized Trailer Axle, and the 1000 lb Black Powder Coated Trailer Axle using a Zinc Tie Plate Kit.

TIE DOWN MODEL: #13070

MODEL: CFAXLE2-LSPRNG(SL)

Specifications

Length: 24.63"

Leaf Width: 1.75"

Arch Height: 4.50"

Bushing Type: Nylon

Used on

General

2000 lb Extended Galvanized PWC Trailer Axle w/ 545 Hubs and Springs

This item is not shipped. Pickup only from our location at 2375 Pleasantdale Rd. Atlanta, GA 30340.

*NOTE: if your trailer is older than 2006, call before ordering to ensure you receive the correct axle.*

Materials Include:

1 - 84.45" x 1.5" x 1.5" x 11 Gauge Galvanized Axle Tubing

2 - Galvanized 5-Bolt Hub Assembly

2 - 3-Leaf Slipper Springs (750 lb)

1 - Galvanized Tie Plate Kit

This item is mounted to the PWT-2212G trailer model with a Galvanized Axle Mounting Kit, and to the PWT-2212B trailer model with a Black Powder Coated Axle Mounting Kit

MODEL: CFAXLE2000G-EXTENDED

Specifications

Tubing: 1.5" Galvanized Square Axle

Load Rating: 2000 lb

Hub Face: 91.5"

Spring Center: 81.5"

Overall Length: 56"

Bearing Size: 1-1/16"

Used on

General

2500 lb Black Powder Coated PWC Trailer Axle w/ 545 Hubs and Springs

*This item is not shipped! Pickup only from our location at 2375 Pleasantdale Rd. Atlanta, GA 30340*

*NOTE: if your trailer is older than 2006, call before ordering to ensure you receive the correct axle.*

Materials Include:

1 - 83" x 2" x 2" x 3/16" Gauge Black Powder Coated Axle Tubing

2 - Black Powder Coated 5-Bolt Hub Assembly

2 - 5-Leaf Slipper Springs (1,250 lb)

1 - BATIE190Z Zinc Tie Plate Kit

This item is mounted to the PWT-2213B, and PWT-2214B trailer models with a Black Powder Coated Axle Mounting Kit.

MODEL: CFAXLE2500B

Specifications

Tubing: 2" Black Powder Coated Square Axle

Load Rating: 2500 lb

Hub Face: 93.5"

Spring Center: 83"

Overall Length: 98.5"

Bearing Size: 1-1/16"

Used on

General

2500 lb Galvanized PWC Trailer Axle w/ 545 Hubs and Springs

*This item is not shipped! Pickup only from our location at 2375 Pleasantdale Rd. Atlanta, GA 30340*

*NOTE: if your trailer is older than 2006, call before ordering to ensure you receive the correct axle.*

Materials Include:

1 - 83" x 2" x 2" x 3/16" Gauge Galvanized Axle Tubing

2 - Galvanized 5-Bolt Hub Assembly

2 - 5-Leaf Slipper Springs (1,250 lb)

1 - BATIE190G Tie Plate Kit

This item is mounted to the PWT-2213G, and PWT-2214G trailer models with a Galvanized Axle Mounting Kit.

MODEL: CFAXLE2500G

Specifications

Tubing: 2" Galvanized Square Axle

Load Rating: 2500 lb

Hub Face: 93.5"

Spring Center: 83"

Overall Length: 98.5

Bearing Size: 1-1/16"

Used on

General

2900 lb Galvanized Idler Trailer Axle w/ 545 Hubs and Springs

*This item is not shipped! Pickup only from our location at 2375 Pleasantdale Rd. Atlanta, GA 30340*

*NOTE: if your trailer is older than 2006, call before ordering to ensure you receive the correct axle.*

Materials Include:

1 - 80.375" x 2" x 2" x .17" Gauge Galvanized Axle Tubing

2 - Galvanized 5-Bolt Hub Assembly

2 - 3-Leaf Double Eye Springs (1850 lb)

1 - 7000# Galvanized Tie Plate Kit

- This item is used on all Tandem, and Single Axle Non-Brake Setup Pontoon Boat Trailers.

- It can be mounted to a Single Axle Pontoon Boat Trailer Fender with a Pontoon Boat Trailer Single Axle Mounting Kit.

- Two of them can be mounted to Tandem Axle Pontoon Boat Trailer Fenders with a Pontoon Boat Trailer Tandem Axle Mounting Kit

**Some states require brakes on all axles and/or wheels. please refer to local laws when placing your order. it is up to the individual dealer to stay within the guidelines as set by the legal authorities.

MODEL: CFAXLE2900G(IDLER)

Specifications

Tubing: 2" Galvanized Square Axle

Load Rating: 2900 lb

Hub Face: 87"

Spring Center: 74"

Overall Length: 92"

Bearing Size: 1-3/8" x 1-1/16"

Optional for

General

3-Leaf Double Eye Springs 1850 lb Maximum Capacity (Qty 2)

These are mounted to the 2900 lb Idler Trailer Axle, or the 3500 lb Hydraulic Disc Brake Trailer Axle using a 7000# Galvanized Tie Plate Kit. These are used on all of our Single, and Tandem Axle Pontoon Boat Trailer models.

Specifications

Length: 20.00"

Leaf Width: 1.75"

Arch Height: 3.00"

Bushing Type: Nylon

Used on

General

3-Leaf Slipper Springs 750 lb Maximum Capacity (Qty 2)

- This item is mounted to the 1500 lb Galvanized Trailer Axle, as well as the 1500 lb Extended Galvanized Trailer Axle with a Galvanized Tie Plate Kit.

- This item is mounted to the 1500 lb Black Powder Coated Trailer Axle with a Zinc Tie Plate Kit.

TIE DOWN MODEL: #13087

MODEL: CFAXLE-LSPRNG(3-SF)

Specifications

Length: 24.63"

Leaf Width: 1.75"

Arch Height: 4.50"

Bushing Type: Nylon

Used on

General

3.75" x 1.25" x .25" Zinc Steel Shackle Link w/ 9/16" Holes - Replacement Standard Shackle Link

These are used to mount 2900 lb Idler Trailer Axles, or 3500 lb Hydraulic Disc Brake Trailer Axles to frames on all Single and Tandem Axle setups for Pontoon Boat trailers, and are frequently used in conjunction with axle equalizers.

Pontoon Boat Trailer Single Axle Mounting Kit

Pontoon Boat Trailer Tandem Axle Mounting Kit

TIE DOWN MODEL: #44536

MODEL: CFAXLELINK(Z)

Used on

General

3/8"-16 x 1.56" x 3.63" Galvanized U-Bolt - For Standard 1.5" SQ Tubing Axles

This item is part of the Galvanized Tie Plate Kit used to mount 3-Leaf Slipper Springs to Galvanized 1.5" Square Axle Tubing.

TIE DOWN MODEL: #83002G

MODEL: CFAXLE-UBLT(1.5SQ-G)

Used on

General

3/8"-16 x 1.56" x 3.63" Zinc U-Bolt - For Standard 1.5" SQ Tubing Axles

This item is part of the Zinc Axle Tie Plate Kit used to mount 2-Leaf Slipper Springs (550 lb), and 3-Leaf Slipper Springs (750 lb) to 1.5" Square Axle Tubing.

TIE DOWN MODEL: #83002Z

MODEL: CFAXLE-UBLT(1.5SQ-Z)

Used on

General

4-Leaf Slipper Springs 1000 lb Maximum Capacity (Qty 2)

- This item is mounted to the 2000 lb Extended Galvanized Trailer Axle with a Galvanized Tie Plate Kit.

DEXTER MODEL: #13071

MODEL: CFAXLE-LSPRNG(4-SF)

Specifications

Length: 24.63"

Leaf Width: 1.75"

Arch Height: 4.50"

Bushing Type: Nylon

Used on

General

5-Leaf Slipper Springs 1,250 lb Maximum Capacity (Qty 2)

- This item is mounted to the 2500 lb Galvanized Trailer Axle with a BATIE190G Galvanized Tie Plate Kit.

- This item is mounted to the 2500 lb Black Powder Coated Trailer Axle with a BATIE190Z Zinc Tie Plate Kit.

TIE DOWN MODEL: #13086

MODEL: CFAXLE5-LSPRNG(SF)

Specifications

Length: 24.63"

Leaf Width: 1.75"

Arch Height: 4.50"

Bushing Type: Nylon

Used on

General

7000# Galvanized Axle Tie Plate w/ 4.49" x 3.5" Dimensions for 2" Tubing and 1.75" Spring Width

This item is part of the 7000# Galvanized Tie Plate Kit used to mount 3-Leaf Double Eye Springs on to 3500 lb Hydraulic Disc Brake Trailer Axles, or 2900 lb Idler Trailer Axles.

TIE DOWN MODEL: 44849DG

MODEL: CFAXLE-TIEPLATE(7000-G)

Specifications

Axle Size: 2" x 2" Square Axle

U-Bolt Size: 1/2"-13 x 2.06" x 4.31"

Dimensions: 4.49" x 3.5"

Tube Width: 2"

Spring Width: 1-3/4"

Hole Diameter: 9/16"

U-Bolt Finish: Galvanized

Plate Finish: Galvanized

Used on

General

7000# Zinc Axle Tie Plate w/ 4.49" x 3.5" Dimensions for 2" Tubing and 1.75" Spring Width

TIE DOWN MODEL: 44849DZ

MODEL: CFAXLE-TIEPLATE(7000-Z)

Specifications

Axle Size: 2" x 2" Square Axle

U-Bolt Size: 1/2"-13 x 2.06" x 4.31"

Dimensions: 4.49" x 3.5"

Tube Width: 2"

Spring Width: 1-3/4"

Hole Diameter: 9/16"

U-Bolt Finish: Zinc

Plate Finish: Zinc

General

Axle Equalizer

Two of these axle equalizers are part of the Pontoon Boat Trailer Tandem Axle Mounting Kit used to mount 3-Leaf Double Eye Springs to frames on all Tandem Axle Setups for Pontoon Boat Trailers

MODEL: CFAXLE-EQUALIZER

Used on
