Tires and Wheels

General

Galvanized Side Mount Spare Tire Carrier

• This item is optional for all of our Galvanized Trailer models.
• It can accommodate wheels from 10" to 16.5" with a spare tire.
• It fits all 4 and 5 lug wheels with 4" and 4.5" diameter hole patterns.
• The galvanized finish provides long lasting protection.
• The item can mount to trailer frames up to 3" wide and 4" high.

*Used on Galvanized Trailer Models Only

TIEDOWN MODEL: #86098

MODEL: CFSTB-SIDE(G)

Installation Instructions

1. Using the spare tire carrier and spare tire as a guide, determine a suitable mounting location on trailer frame.

2. Slide U-bolt around the frame and through the holes in tire carrier.

3. Mount with flat washers, lock washers and nuts provided.

4. Using the spare tire to determine the correct holes to use, place the carriage bolts provided for mounting the spare tire in the holes of the rectangular plate. Bolt heads should be on the back side of the tire carrier. Secure bolts with “star” washers.

5. The mounting plate will accommodate several sizes of frames by using the various hole patterns.

6. Check position of the tire mount for proper clearance with the spare tire before tightening bolts.

7. Mount spare tire with 1/2" bolt, washers and hex nuts provided.

Optional for

ALL GALVANIZED TRAILER MODELS

General

4.80 x 12″ C Load Range 545 Hole Pattern Galvanized Finish Bias Tire & Wheel - Kenda/Loadstar

Tire Characteristics:

MODEL: CFT48012G-LRC

Used on:

General

4.80 x 12″ C Load Range 545 Hole Pattern Silver E-Coat Finish Bias Tire & Wheel - Kenda/Loadstar

This is the tire and wheel used on PWT-800B, PWT-1000B, PWT-1100B, and PWT-2212B black powder coated trailer models. Tire capacity is 990lbs (450kg). Speed rating 65 mph.

MODEL: CFT48012S-LRC

Used on

General

ST175/80D13 13" C Load Range 545 Hole Pattern Galvanized Finish Bias Tire & Wheel - Kenda/Loadstar, 65 psi

This item is used on PWT-2213G, PWT-2214G, and our smaller Pontoon Boat Trailer models. Speed rating is 81 mph

MODEL: CFTST175DLRC-G

Used on

General

ST175/80D13 13" C Load Range 545 Hole Pattern Silver E-Coat Finish Bias Tire & Wheel - Kenda/Loadstar, 50 psi

This item is used on PWT-2213B, and PWT-2214B trailer models. Tire Capacity of 1360lbs (615kg). Speed rating of 81 mph. Max 50 PSI.

MODEL: CFT175DLRC-S

Used on

General

ST175/80R13 13" D Load Range 545 Hole Pattern Galvanized Finish Radial Tire & Wheel - Kenda/Loadstar, 65 psi

This item is used on our PT-2426, and PT-2628 Trailer Models, but is also an upgradable option for all Trailer Models with 13" Tires. Speed rating is 81 mph.

MODEL: CFT175DLRD-G

Used on

Upgrade for

General

1/2″-20 Lug Nut (Set of 5)

These are used for mounting tires on all trailer models to 1 1/2"-20 Threaded Stud.

MODEL: CFNUTLUG

Used on

ALL COM-FAB TRAILER MODELS WITH SILVER E-COAT OR GALVANIZED WHEELS

General

Locking Spare Tire Bracket, fits 3″ Width Tubing

This item is used to lock down, and transport a spare tire on all Com-Fab trailer models. Lock not included.

MODEL: CFSTB-TOP

Optional for

ALL COM-FAB TRAILER MODELS

General

1/2"-20 Long Chrome Acorn Lug Nut (Set of 5)

These are used on 1 1/2-20" Threaded Studs with a Long Stainless Steel Cap for T09/BM V-Spoke Rim on an ST175/80R13 D Load Range 13" Aluminum Tire and Wheel, but is optional for all trailer models.

MODEL: CFAXLE-NUT(LUG-CHROME)

Optional for

ALL COMFAB TRAILER MODELS

General

Black Powder Coated Side Mount Spare Tire Carrier

• This item is optional for all of our Black Powder Coated Trailer models.
• It can accommodate wheels from 10" to 16.5" with a spare tire.
• It fits all 4 and 5 lug wheels with 4" and 4.5" diameter hole patterns.
• The powder coated finish provides long lasting protection.
• The item can mount to trailer frames up to 3" wide and 4" high.


*Used on Black Powder Coated Trailer Models Only

TIEDOWN MODEL: #86100

MODEL: CFSTB-SIDE(B)

Installation Instructions

1. Using the spare tire carrier and spare tire as a guide, determine a suitable mounting location on trailer frame.

2. Slide U-bolt around the frame and through the holes in tire carrier.

3. Mount with flat washers, lock washers and nuts provided.

4. Using the spare tire to determine the correct holes to use, place the carriage bolts provided for mounting the spare tire in the holes of the rectangular plate. Bolt heads should be on the back side of the tire carrier. Secure bolts with “star” washers.

5. The mounting plate will accommodate several sizes of frames by using the various hole patterns.

6. Check position of the tire mount for proper clearance with the spare tire before tightening bolts.

7. Mount spare tire with 1/2" bolt, washers and hex nuts provided.

Optional for

ALL BLACK POWDER COATED TRAILER MODELS

General

4.80 x 12″ Load Range C 545 Hole Pattern AM02/BM Black Machined Aluminum V-Spoke Bias Tire & Wheel - Kenda/Loadstar

This is the tire and wheel used on the PWT1100AL model and optional for PWT-800, PWT-1000, PWT-1100, and PWT-2212 black powder coated and galvanized trailer models. Speed rating 81 mph.

MODEL: CFT48012-VSPOKE(BM)-LRC

Used on

PWT-1100AL

Optional for

General

ST175/80R13 13" D Load Range 545 Hole Pattern T07/BM Black Machined V-Spoke Aluminum Radial Tire & Wheel - Kenda/Loadstar, 65 psi

This item is an upgradable option for all Trailer Models with 13" Tires. Speed rating is 81 mph.

MODEL: CFTST175RLRD-VSPOKE

Upgrade for

General

ST205/75R14 14" D Load Range 545 Hole Pattern Galvanized Radial Tire & Wheel - Kenda/Loadstar, 65 psi

This item is used on our PT-2628 & PT-2830 Trailer Models, but is also an upgradable option for all Pontoon Trailer Models. Speed rating is 81 mph.

MODEL: CFTST205DLRD-G

Used on

Upgrade for

General

5.70 x 8″ C Load Range 545 Hole Pattern Galvanized Finish Tire & Wheel - Kenda/Loadstar, Bias

This tire and wheel is optional on the PWT-800G, PWT-1000G, PWT-1100G, and all Jon Boat Trailer models. Speed rating 65 mph.

MODEL: CFT5708G

Optional on

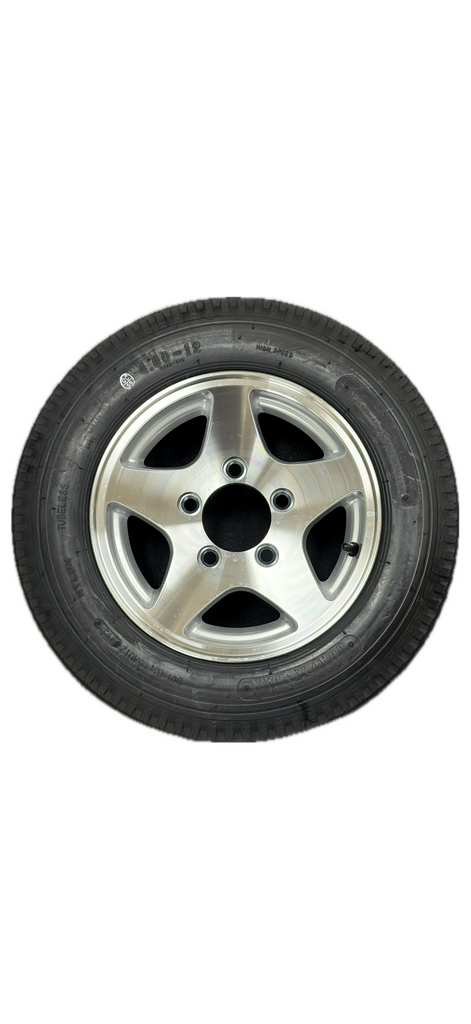

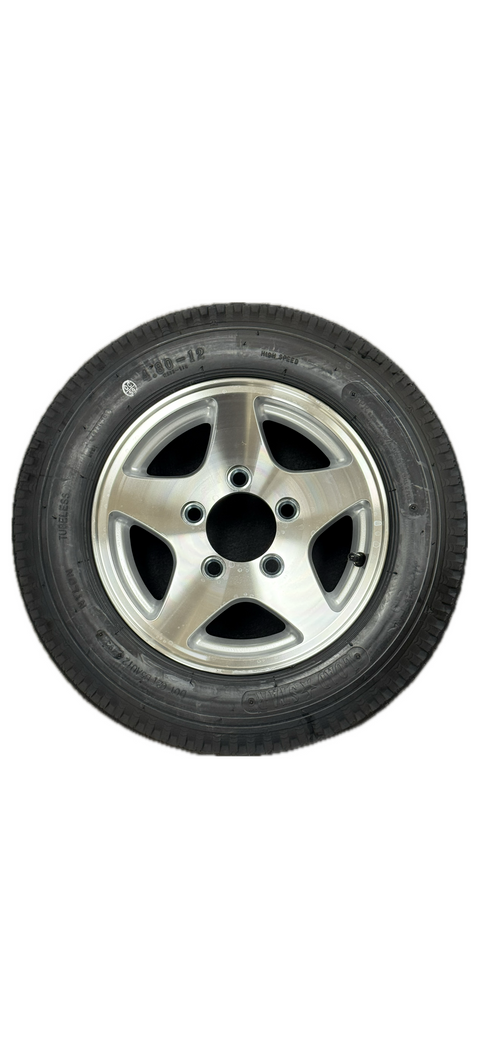

4.80 x 12" Load Range C 545 Hole Pattern STAR Mag Aluminum Bias Tire & Wheel

This is the tire and wheel used on the PWT1100AL model and optional for PWT-800, PWT-1000, PWT-1100, and PWT-2212 black powder coated and galvanized trailer models.

Speed rating: J (62 mph)
