4 Capacity Canoe/Kayak Kit

General

Universal canoe/kayak trailer conversion kit for up to 2 canoes or 2 kayaks without plastic protective covering.

One size fits all trailer kit:

- Designed to hold 2 kayak/canoes

- Adjustable crossbeam placement to fit a wide range of needs and preferences

- Fits on 1.5", 2", 3" rectangular and/or square tubing where applicable

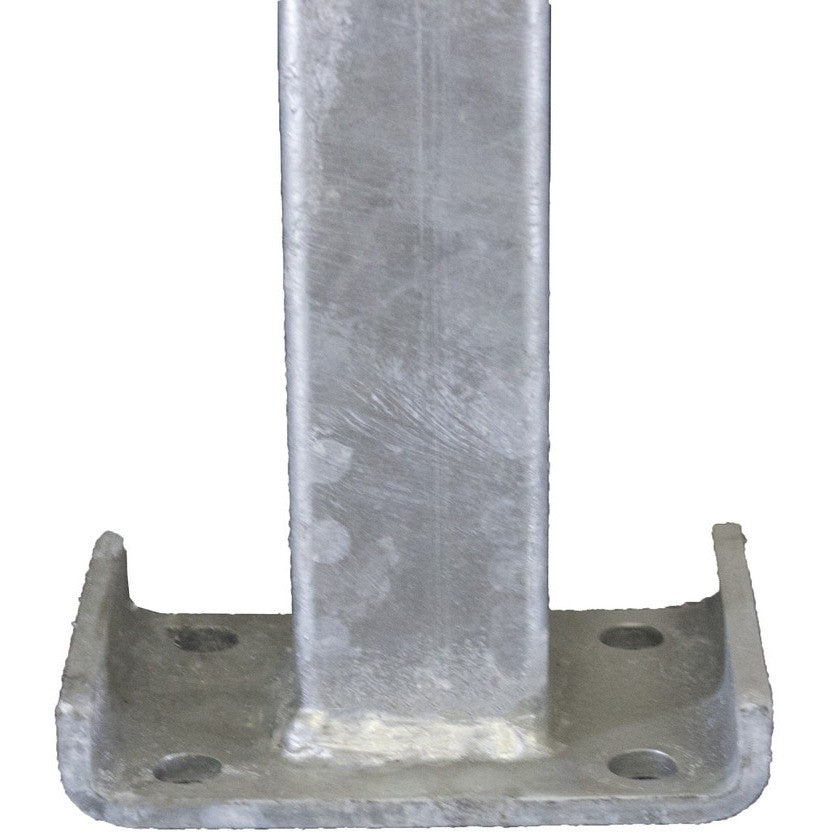

- 2x2x11 gauge upright bracing for universal fit

- 2x2x14 gauge cross brace with stability slides, preventing side-to-side movement and increase stability (Optional)

This is a conversion kit only and requires a trailer to mount.

Only the kayak kit is available for shipment. Canoe kits are pickup only from our location at 2375 Pleasantdale Rd. Atlanta, GA 30340

Specifications

Kayak Setup - CFKIT-KAY(2)

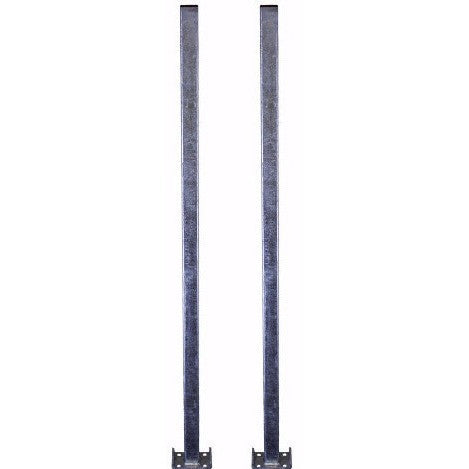

• 2x 24" Uprights

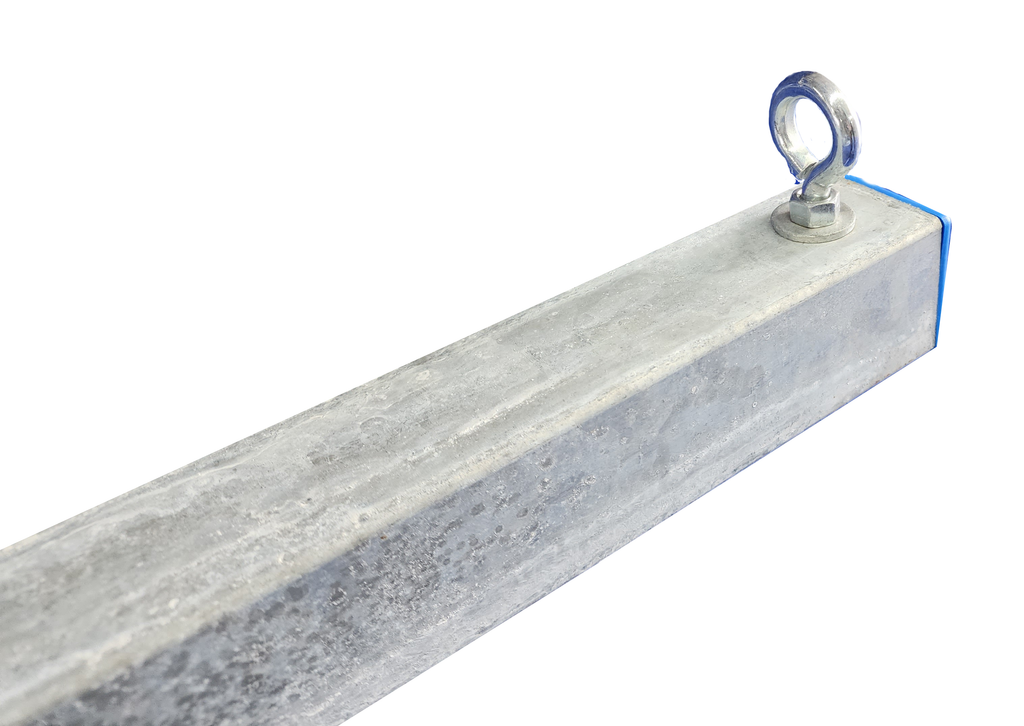

• 2x 60" Crossbeams with Strap Assist and End Caps
• 4x Zinc U Bolts with Washer and Nut for Adjusting and Securing Crossbeams
• 4x Galvanized U Bolts with Washer and Nut for Securing Uprights to Trailer *

Canoe Setup - CFKIT-CAN(2)

• 2x 24" Uprights
• 2x 80" Crossbeams with Strap Assist and End Caps
• 4x Zinc U Bolts with Washer and Nut for Adjusting and Securing Crossbeams
• 4x Galvanized U Bolts with Washer and Nut for Securing Uprights to Trailer *

* The tubing size of the trailer will determine which U Bolts will be needed to secure the uprights to the frame.

General

Canoe/kayak trailer adapter kit for up to 3 kayaks or 3 canoes without plastic protective covering.

- Designed to hold 3 kayaks/canoes

- Fits on 1.5", 2", 3" rectangular and/or square tubing where applicable.

- 2x2x11 gauge upright bracing for universal fit.

- 2x2x14 gauge cross brace with stability slides, preventing side-to-side movement and increase stability. (Optional)

This is a conversion kit only and requires a separate trailer to mount.

Only the kayak kit is available for shipment. Canoe kits are pickup only from our location at 2375 Pleasantdale Rd. Atlanta, GA 30340

Specifications

Kayak Kit Includes:

• 2x 30" Uprights
• 2x 48" Crossbeams with Strap Assist and End Caps
• 2x 60" Crossbeams with Strap Assist and End Caps
• 8x Zinc U Bolts with Washer and Nut for Adjusting and Securing Crossbeams
• 4x Galvanized U Bolts with Washer and Nut for Securing Uprights to Trailer *

MODEL: CFKIT-KAY(3)

Canoe Kit Includes:

• 2x 30" Uprights
• 2x 48" Crossbeams with Strap Assist and End Caps
• 2x 80" Crossbeams with Strap Assist and End Caps
• 8x Zinc U Bolts with Washer and Nut for Adjusting and Securing Crossbeams
• 4x Galvanized U Bolts with Washer and Nut for Securing Uprights to Trailer *

MODEL: CFKIT-CAN(3)

* The tubing size of the trailer will determine which U Bolts will be needed to secure the uprights to the frame.

General

Universal canoe/kayak trailer kit for up to 2 canoes and 2 kayaks without plastic protective covering.

One size fits all trailer kit:

- Designed to hold 2 kayaks + 2 canoes

- Adjustable crossbeam placement to fit a wide range of needs and preferences

- Easy install and removal

- Fits on 1.5", 2", 3" rectangular and/or square tubing where applicable.

- 2x2x11 gauge upright bracing for universal fit.

- 2x2x14 gauge cross brace with stability slides, preventing side-to-side movement and increase stability. (Optional)

This is a conversion kit only and requires a trailer to mount.

This item is not shipped. Pickup only from our location at 2375 Pleasantdale Rd. Atlanta, GA 30340

Specifications

Kit Includes:

• 2x 60" Uprights
• 2x 60" Crossbeams with Strap Assist and End Caps
• 2x 80" Crossbeams with Strap Assist and End Caps
• 8x Zinc U Bolts with Washer and Nut for Adjusting and Securing Crossbeams
• 4x Galvanized U Bolts with Washer and Nut for Securing Uprights to Trailer *

* The tubing size of the trailer will determine which U Bolts will be needed to secure the uprights to the frame.

MODEL: CFKIT-CAN/KAY(2/2)

General

Canoe/kayak trailer conversion kit for up to 6 canoes or 6 kayaks without plastic protective covering.

One size fits all trailer kit:

- Designed to hold 6 regular sized canoes/kayaks

- Fits on 1.5", 2", 3" rectangular and/or square tubing where applicable.

- 2 x 2 x 11 gauge upright bracing for universal fit.

- 2 x 2 x 14 gauge cross braces with stability slides, preventing side-to-side movement. (Optional)

This is a conversion kit only and requires a separate trailer to mount.

Only the kayak kit is available for shipment. Canoe kits are pickup only from our location at 2375 Pleasantdale Rd. Atlanta, GA 30340

Specifications

Canoe Kit Includes:

• 2 x 72" Uprights
• 6 x 80" Crossbeams with Strap Assist and End Caps
• 12 x Zinc U Bolts with Washer and Nut for Adjusting and Securing Crossbeams
• 4 x Galvanized U Bolts with Washer and Nut for Securing Uprights to Trailer *

MODEL: CFKIT-CAN(6)

Kayak Kit Includes:

• 2 x 60" Uprights
• 6 x 60" Crossbeams with Strap Assist and End Caps
• 12 x Zinc U Bolts with Washer and Nut for Adjusting and Securing Crossbeams
• 4 x Galvanized U Bolts with Washer and Nut for Securing Uprights to Trailer *

MODEL: CFKIT-KAY(6)

 * The tubing size of the trailer will determine which U Bolts will be needed to secure the uprights to the frame.
