Hubs

General

Complete 545 Bolt 1250/1350LB Hub Assembly w/Bearings, Seal, Amp and Dust Cap - Dexter

Hub Includes:

- Triple Lip Grease Seal - 1.25" I.D. - 1.98"

- 1-1/16" Bearing Cup

- 1-1/16" L44649 Bearings

- 1-1/2"-20 Lug Nut Studs

- 1/2″-20 Lug Nut (Set of 5)

- 1.98" Dust Cap

- Super Lube Rubber Grommet

-Cotter Pin

- 12 Position Castle Nut

TIEDOWN MODEL: #46205X

MODEL: CFAXLE-HUB5BLT(1350-G)

Used on

General

Black Powder Coated 545 Bolt 1250/1350LB Hub Assembly w/ Bearings, Seal, Amp, and Dust Cap - Dexter

Hub Includes:

- Triple Lip Grease Seal - 1.25" I.D. - 1.98"

- 1-1/16" Bearing Cup

- 1-1/16" L44649 Bearings

- 1-1/2"-20 Lug Nut Studs

- 1/2″-20 Lug Nut (Set of 5)

- 1.98" Dust Cap

- Super Lube Rubber Grommet

- Cotter Pin

MODEL: CFAXLE-HUB5BLT(1350-B)

Used on

General

1-1/16" L44649 Tapered Axle Bearings

These bearings fit a 1-1/16" diameter Spindle Shaft, and are used with L44610 Bearing Cups. These are used on Tie-Down #1350, and #1750 Hubs

MODEL: CFAXLE-BRG(1-1/16")-INNER/OUTER

UNIVERSAL MODEL: L44649

MPN: TDE 11054 or Dexter 031-031-02

Used on

ALL COM-FAB PWC, JON BOAT, AND CANOE/KAYAK TRAILER MODELS

General

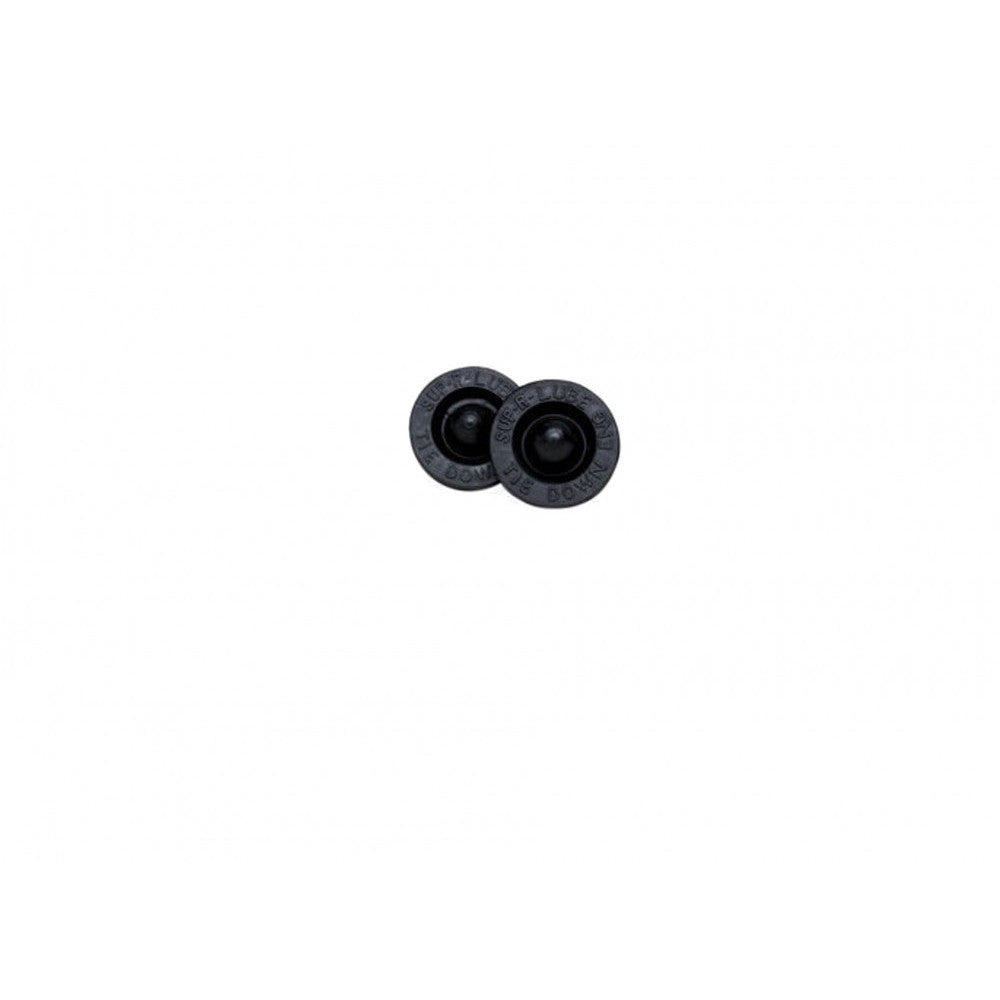

3.06″ Wide Rubber Grommet for Steel E-Z Lube/SuperLube Grease Dust Cap

This item is used in conjunction with a 2" Dust Cap as part of both Hub Assemblies.

2″ Steel Super Lube Grease Dust Cap & Plug

Galvanized 5-Bolt Hub Assembly

Powder Coated Black 5-Bolt Hub Assembly

MODEL: CFAXLE-PLUG

MPN: Dexter 085-001-00 or TDE 46963

Used on

ALL COM-FAB TRAILER MODELS

General

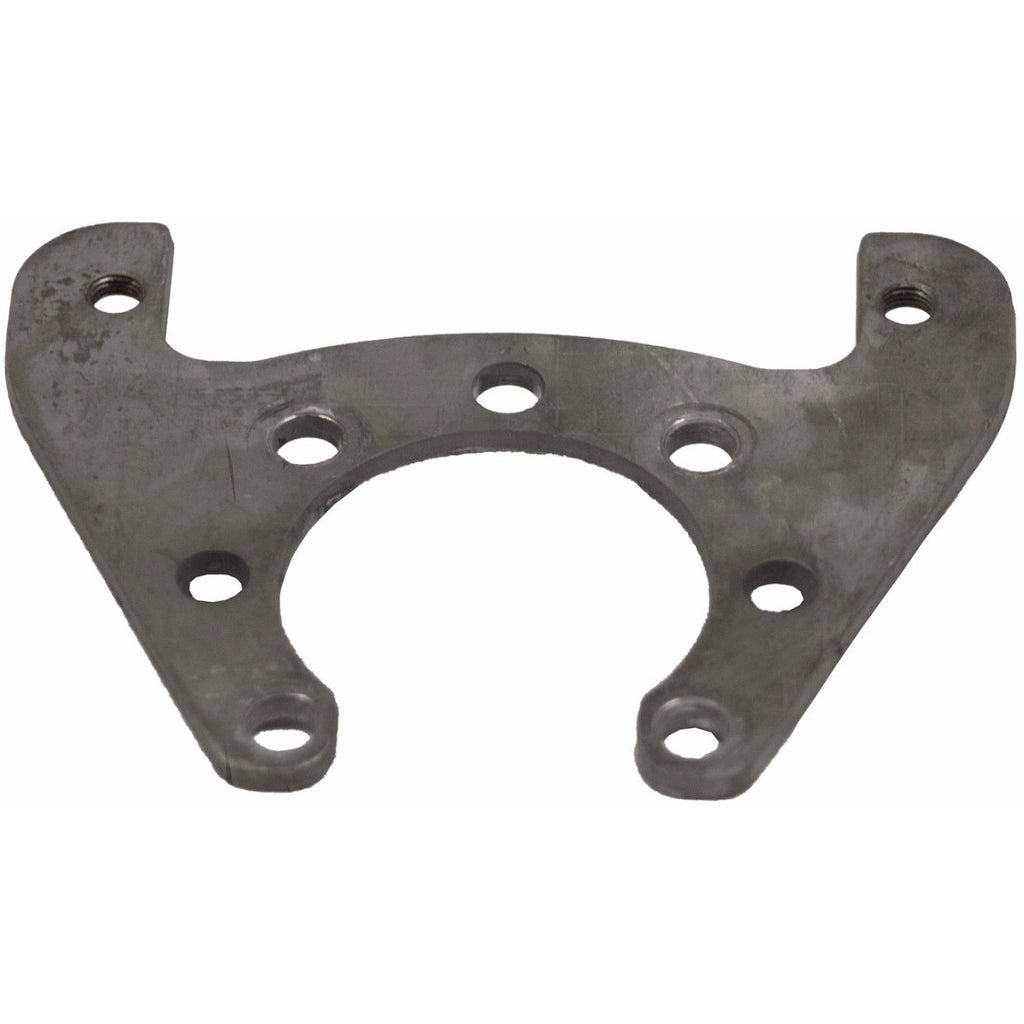

Tie Down Galvanized Caliper Mounting Bracket for 9.6" Integral Rotor

This item is used with 7/16"-13 UNC x 1-1/4" Grade 5 Zinc Bolts to mount an Aluminum E-Coat Caliper Assembly for a 9.6" Integral Rotor to a brake flange on a 2" Square Axle. It is used on all Pontoon Boat Trailer models with Brakes.

MODEL: CFAXLE-BRKTMNT(CALIPER-1750-G)

MPN: TDE 44676G or Dexter 090-44676G

Used on

General

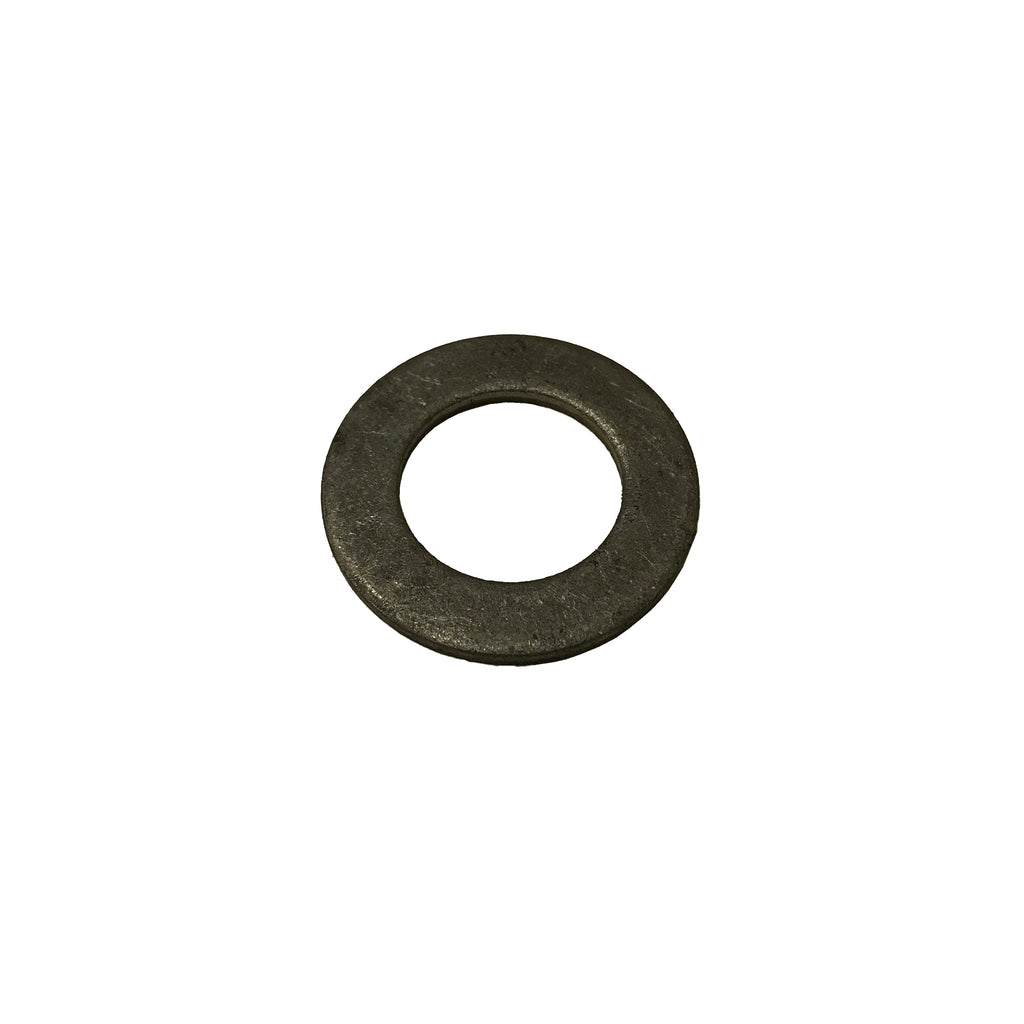

1 Inch Flat Spindle Washer - "ID" Washer

This item is used to help secure Hubs to Axle Spindles on all of our JBT, PWT & KCT Models. It is placed in between the 12 Position Castle Nut w/Cotter Pin and the hub's outer-facing bearing in the Hub Assembly on the Axle Spindle.

12 Position Castle Nut

5/32" x 2" Zinc Cotter Pin for Axle Spindle

Axle Spindle

Galvanized 5-Bolt Hub Assembly

Black Powder Coated 5-Bolt Hub Assembly

MODEL: CFAXLE-WSHR(SPINDLE)

MPN: 005-10520

Used on

ALL COM-FAB TRAILER MODELS

General

Triple Lip Grease Seal - 1.25" I.D. - 1.98"

This seal is part of our Galvanized 5-Bolt Hub Assembly, and our Black Powder Coated 5-Bolt Hub Assembly. This rubber coated seal fits Tiedown Bearings 44643, and 44649

MODEL: CFAXLE-SEAL(TRIPLE-1.25)

MPN: 1252555UC or Dexter 010-11084

Used on

General

12-Sided/Position Axle Cone Castle Nut, 1"-14 Thread

This item is fastened to the end of an Axle Spindle with the use of a 5/32" x 2" Zinc Plated Cotter Pin. This combination secures Hubs to all PWC Trailer Models. It is rated for axles less than 3000 lbs. It is a 1"-14 Thread 12-Slot Castle Nut to fit standard 1" trailer spindles.

MODEL: CFAXLE-NUT(CASTLE-L)

MPN: Dexter 006-10634 or TDE 10634

Used on

1-3/8" L68149 Axle Bearing Cup/Race. For Use w/ 1750LB Hubs as Outer/Outward Facing Bearing.
