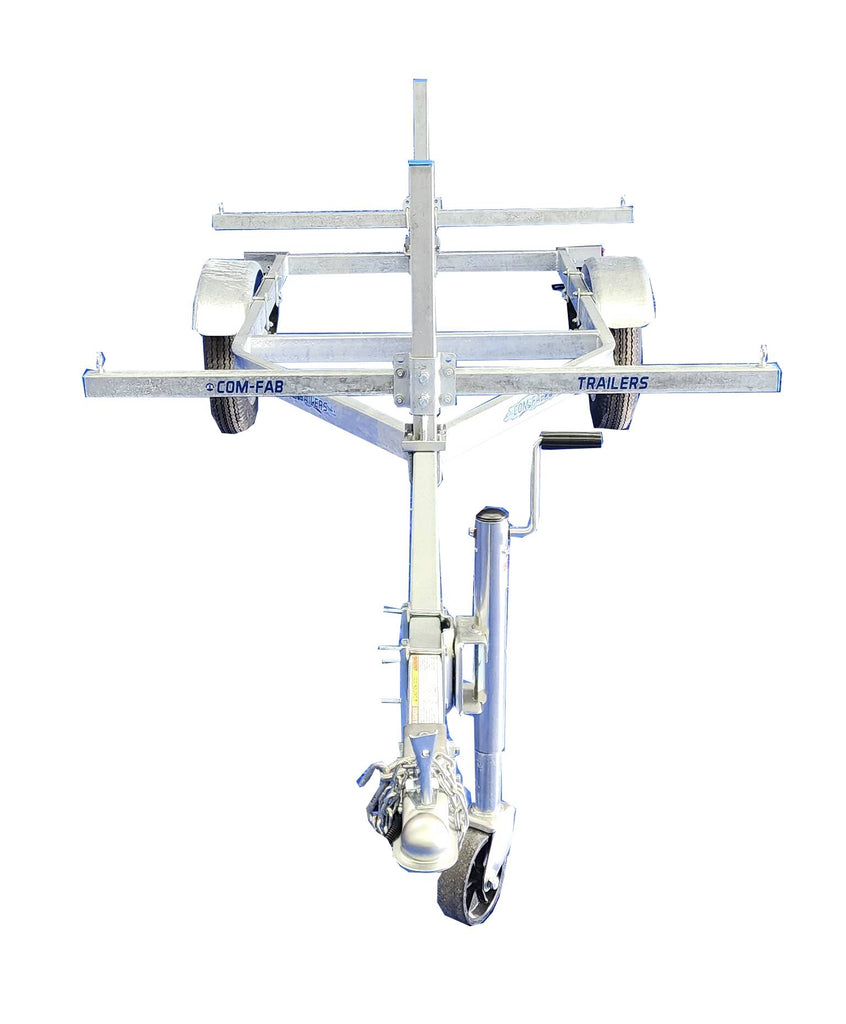

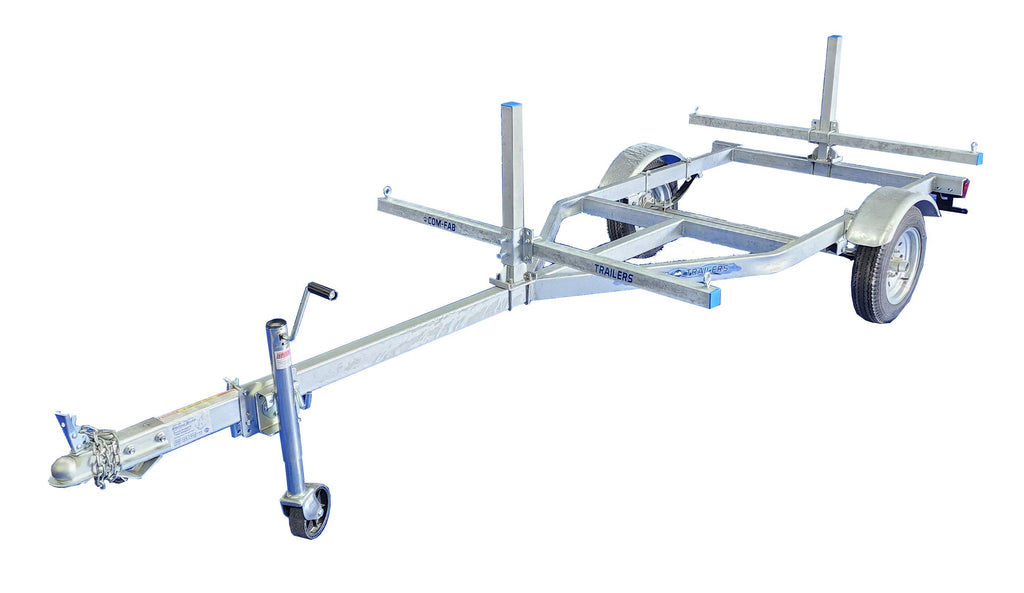

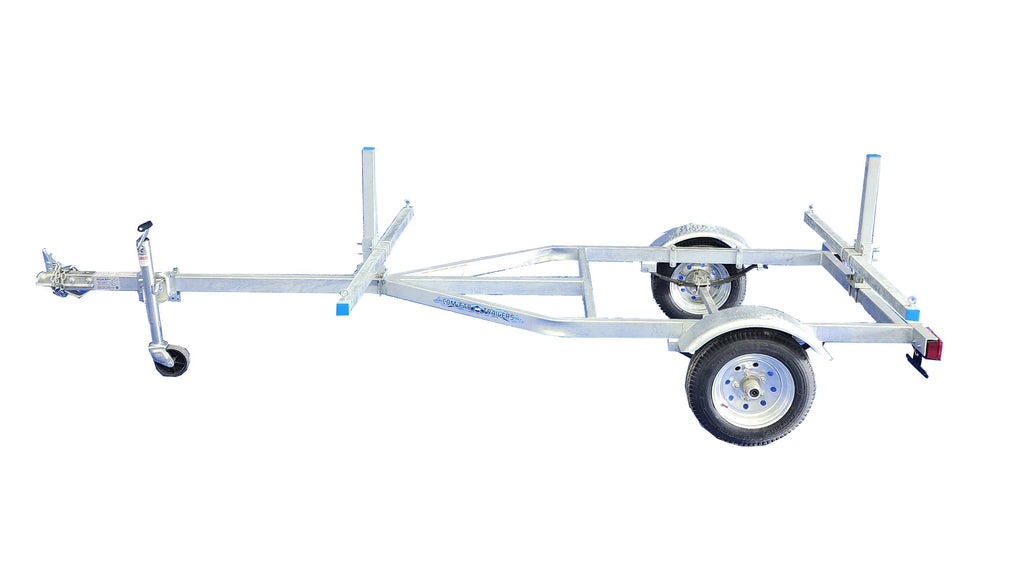

2 Capacity Canoe/Kayak Conversion Kit
$339.99
2 Capacity Canoe/Kayak Conversion Kit
Universal canoe/kayak trailer conversion kit for up to 2 canoes or 2 kayaks without plastic protective covering.
One size fits all trailer kit:
- Designed to hold 2 kayak/canoes
- Adjustable crossbeam placement to fit a wide range of needs and preferences
- Fits on 1.5", 2", 3" rectangular and/or square tubing where applicable
- 2x2x11 gauge upright bracing for universal fit
- 2x2x14 gauge cross braces
This is a conversion kit only and requires a trailer to mount.

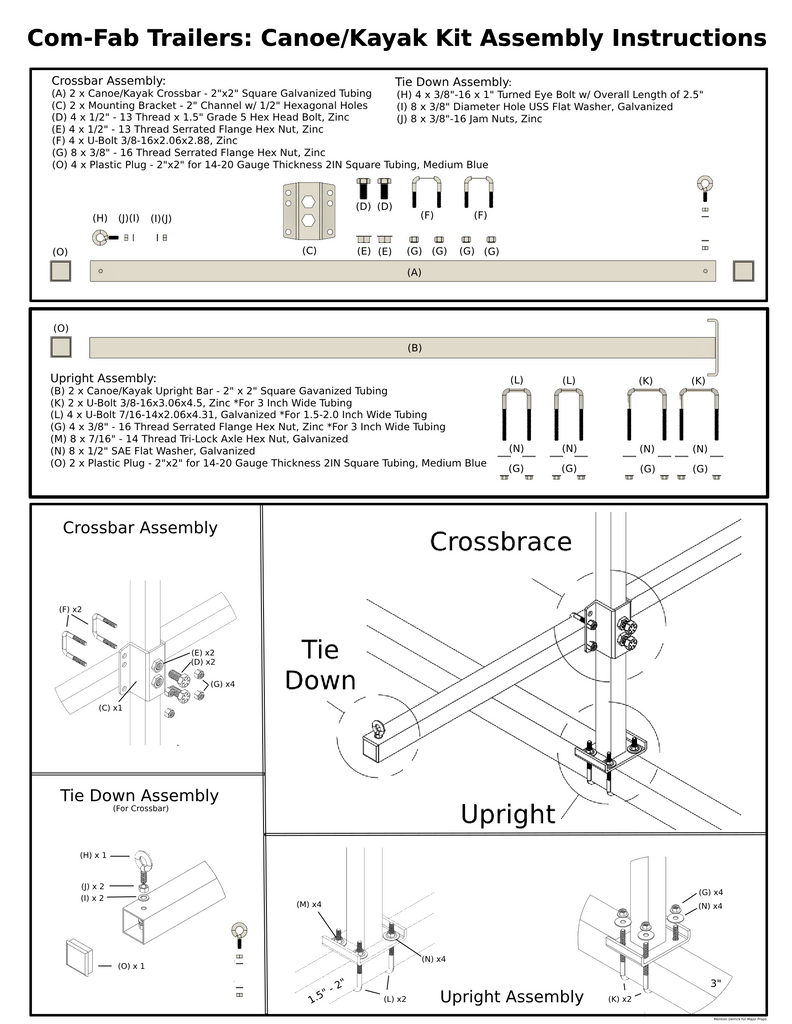

Click the following link for Assembly Instructions
https://cdn.shopify.com/s/files/1/1557/3371/files/Canoe_Kayak_Kit_Assembly_Instructions.pdf
Kayak Setup - CFKIT-KAY(2)
- 2x 24" Uprights
- 2x 60" Crossbeams with Strap Assist and End Caps
- 2x Mounting Bracket - 2" Channel w/ 1/2" Hexagonal Holes
- 4x Zinc Bolt and Nut to Tighten Crossbeam to Mounting Bracket
- 4x Zinc U Bolts with Washer and Nut for Securing Crossbeams
- 4x Galvanized U Bolts with Washer and Nut for Securing Uprights to 1.5" & 2" Tubing
- 4x Galvanized U Bolts with Washer and nut for Securing Uprights to 3" wide Tubing

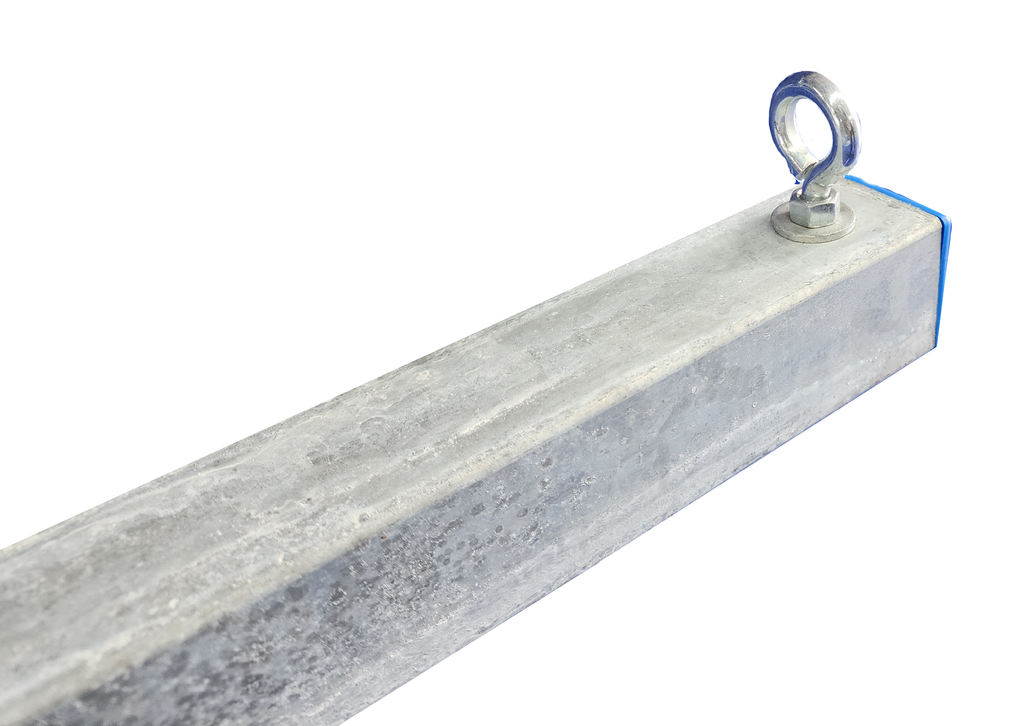

- 4x Turned Eye Bolts for use with Tie Downs
- 8x Galvanized Lock Nuts for locking in Eye Bolts
Canoe Setup - CFKIT-CAN(2)
- 2x 24" Uprights
- 2x 80" Crossbeams with Strap Assist and End Caps
- 2x Mounting Bracket - 2" Channel w/ 1/2" Hexagonal Holes
- 4x Zinc Bolt and Nut to Tighten Crossbeam to Mounting Bracket
- 4x Zinc U Bolts with Washer and Nut for Adjusting and Securing Crossbeams
- 4x Galvanized U Bolts with Washer and Nut for Securing Uprights to 1.5" & 2" Tubing
- 4x Galvanized U Bolts with Washer and nut for Securing Uprights to 3" wide Tubing
- 4x Turned Eye Bolts for Securing Tie Downs
- 8x Galvanized Lock Nuts for Securing Eye Bolts
Click the following link for Assembly Instructions
https://cdn.shopify.com/s/files/1/1557/3371/files/Canoe_Kayak_Kit_Assembly_Instructions.pdf
