6 Capacity Canoe/Kayak Conversion Kit
$729.99

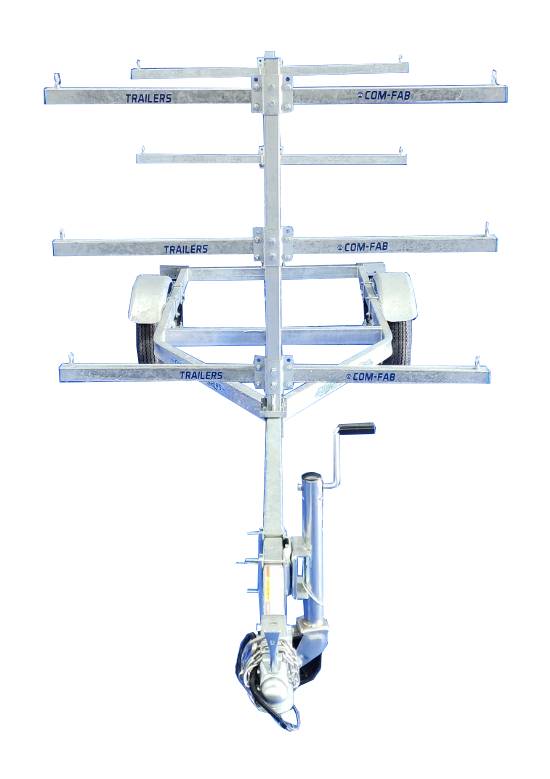

6 Capacity Canoe/Kayak Conversion Kit
Canoe/kayak trailer conversion kit for up to 6 canoes or 6 kayaks without plastic protective covering.
One size fits all trailer kit:
- Designed to hold 6 regular sized canoes/kayaks
- Fits on 1.5", 2", 3" rectangular and/or square tubing where applicable.

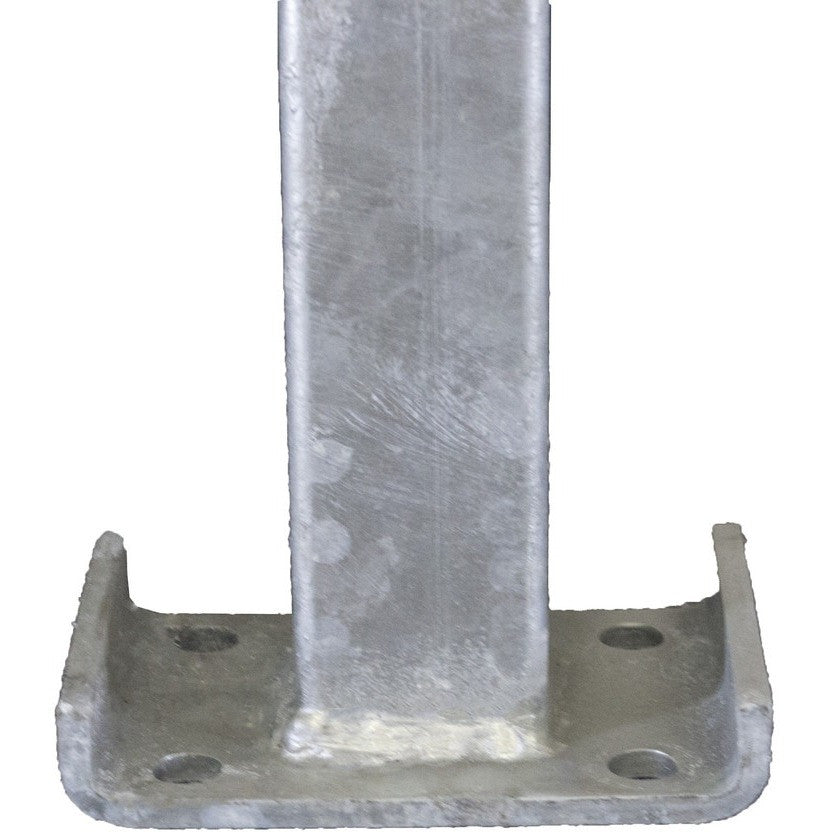

- 2 x 2 x 11 gauge upright bracing for universal fit.
- 2 x 2 x 14 gauge cross braces
This is a conversion kit only and requires a separate trailer to mount.

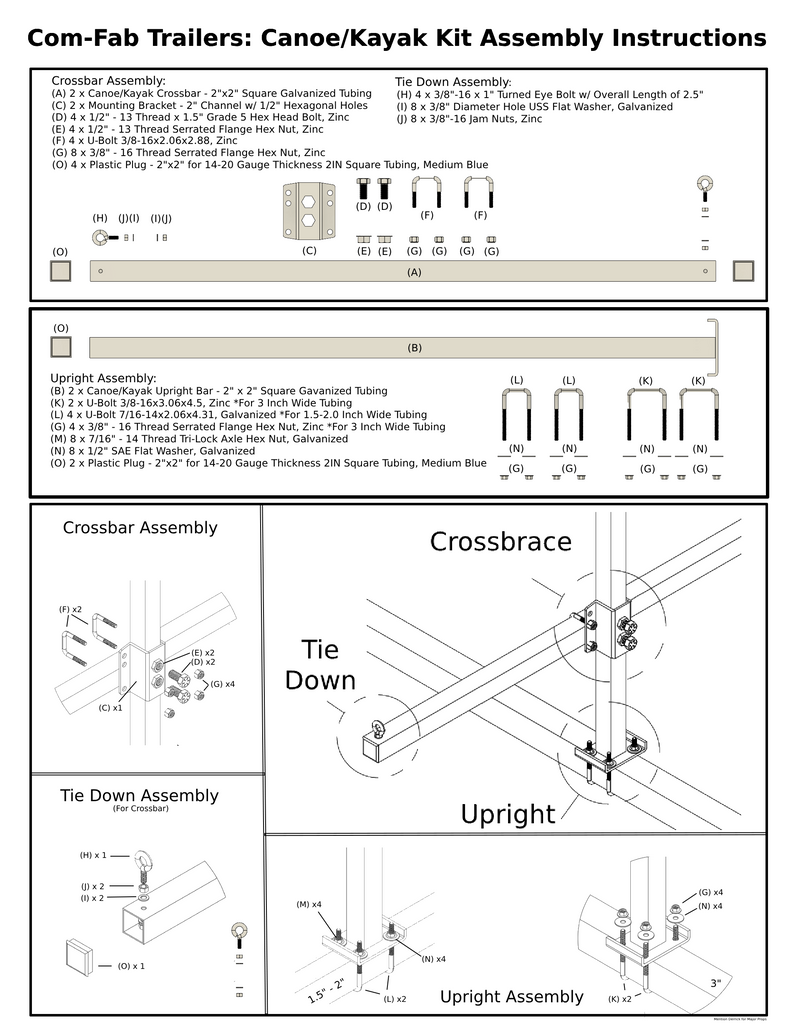

Click the following link for Assembly Instructions
https://cdn.shopify.com/s/files/1/1557/3371/files/Canoe_Kayak_Kit_Assembly_Instructions.pdf
6 Capacity Normal Kayak Kit - CFKIT-KAY(6S)
- 2x 48" Uprights

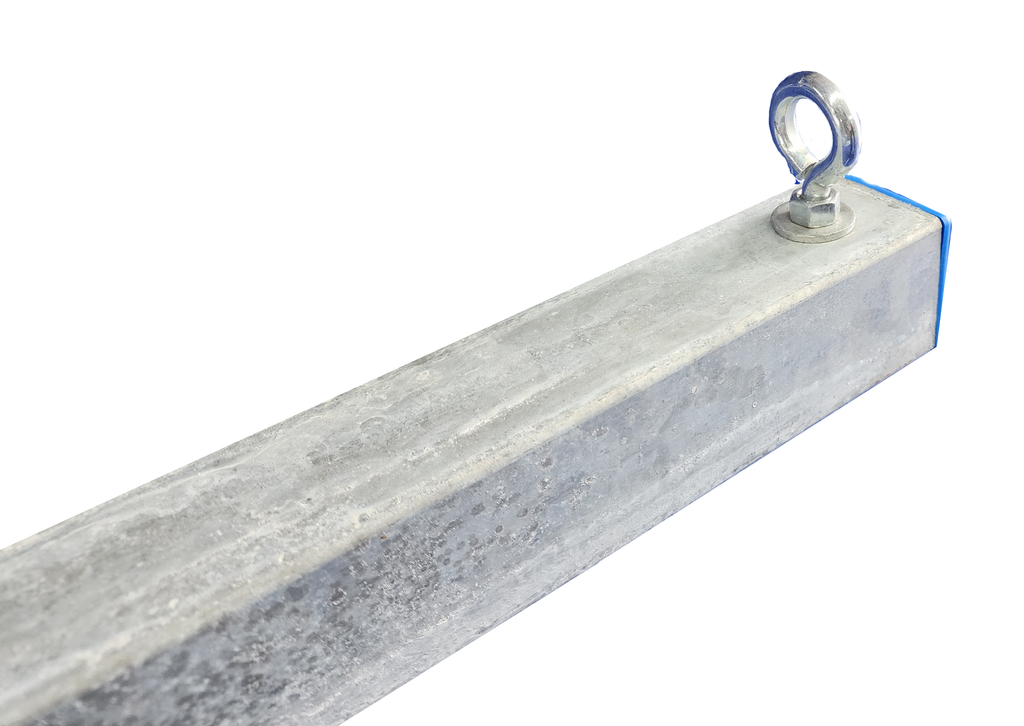

- 6x 60" Crossbeams with Strap Assist and End Caps
- 6x Mounting Bracket - 2" Channel w/ 1/2" Hexagonal Holes
- 12x Zinc Bolt and Nut to Tighten Crossbeam to Mounting Bracket
- 12x Zinc U Bolts with Washer and Nut for Securing Crossbeams
- 4x Galvanized U Bolts with Washer and Nut for Securing Uprights to 1.5" & 2" Tubing
- 4x Galvanized U Bolts with Washer and nut for Securing Uprights to 3" wide Tubing
- 12x Turned Eye Bolts for use with Tie Downs
- 24x Galvanized Lock Nuts for locking in Eye Bolts
6 Capacity Tall Kayak Kit - CFKIT-KAY(6T)
- 2x 60" Uprights
- 6x 60" Crossbeams with Strap Assist and End Caps
- 6x Mounting Bracket - 2" Channel w/ 1/2" Hexagonal Holes
- 12x Zinc Bolt and Nut to Tighten Crossbeam to Mounting Bracket
- 12x Zinc U Bolts with Washer and Nut for Securing Crossbeams
- 4x Galvanized U Bolts with Washer and Nut for Securing Uprights to 1.5" & 2" Tubing
- 4x Galvanized U Bolts with Washer and nut for Securing Uprights to 3" wide Tubing
- 12x Turned Eye Bolts for use with Tie Downs
- 24x Galvanized Lock Nuts for locking in Eye Bolts
6 Capacity Normal Canoe Kit - CFKIT-CAN(6S)
- 2x 60" Uprights
- 6x 80" Crossbeams with Strap Assist and End Caps
- 6x Mounting Bracket - 2" Channel w/ 1/2" Hexagonal Holes
- 12x Zinc Bolt and Nut to Tighten Crossbeam to Mounting Bracket
- 12x Zinc U Bolts with Washer and Nut for Securing Crossbeams
- 4x Galvanized U Bolts with Washer and Nut for Securing Uprights to 1.5" & 2" Tubing
- 4x Galvanized U Bolts with Washer and nut for Securing Uprights to 3" wide Tubing
- 12x Turned Eye Bolts for use with Tie Downs
- 24x Galvanized Lock Nuts for locking in Eye Bolts
6 Capacity Tall Canoe Kit - CFKIT-CAN(6T)
- 2x 72" Uprights
- 6x 80" Crossbeams with Strap Assist and End Caps
- 6x Mounting Bracket - 2" Channel w/ 1/2" Hexagonal Holes
- 12x Zinc Bolt and Nut to Tighten Crossbeam to Mounting Bracket
- 12x Zinc U Bolts with Washer and Nut for Securing Crossbeams
- 4x Galvanized U Bolts with Washer and Nut for Securing Uprights to 1.5" & 2" Tubing
- 4x Galvanized U Bolts with Washer and nut for Securing Uprights to 3" wide Tubing
- 12x Turned Eye Bolts for use with Tie Downs
- 24x Galvanized Lock Nuts for locking in Eye Bolts
Click the following link for Assembly Instructions
https://cdn.shopify.com/s/files/1/1557/3371/files/Canoe_Kayak_Kit_Assembly_Instructions.pdf
