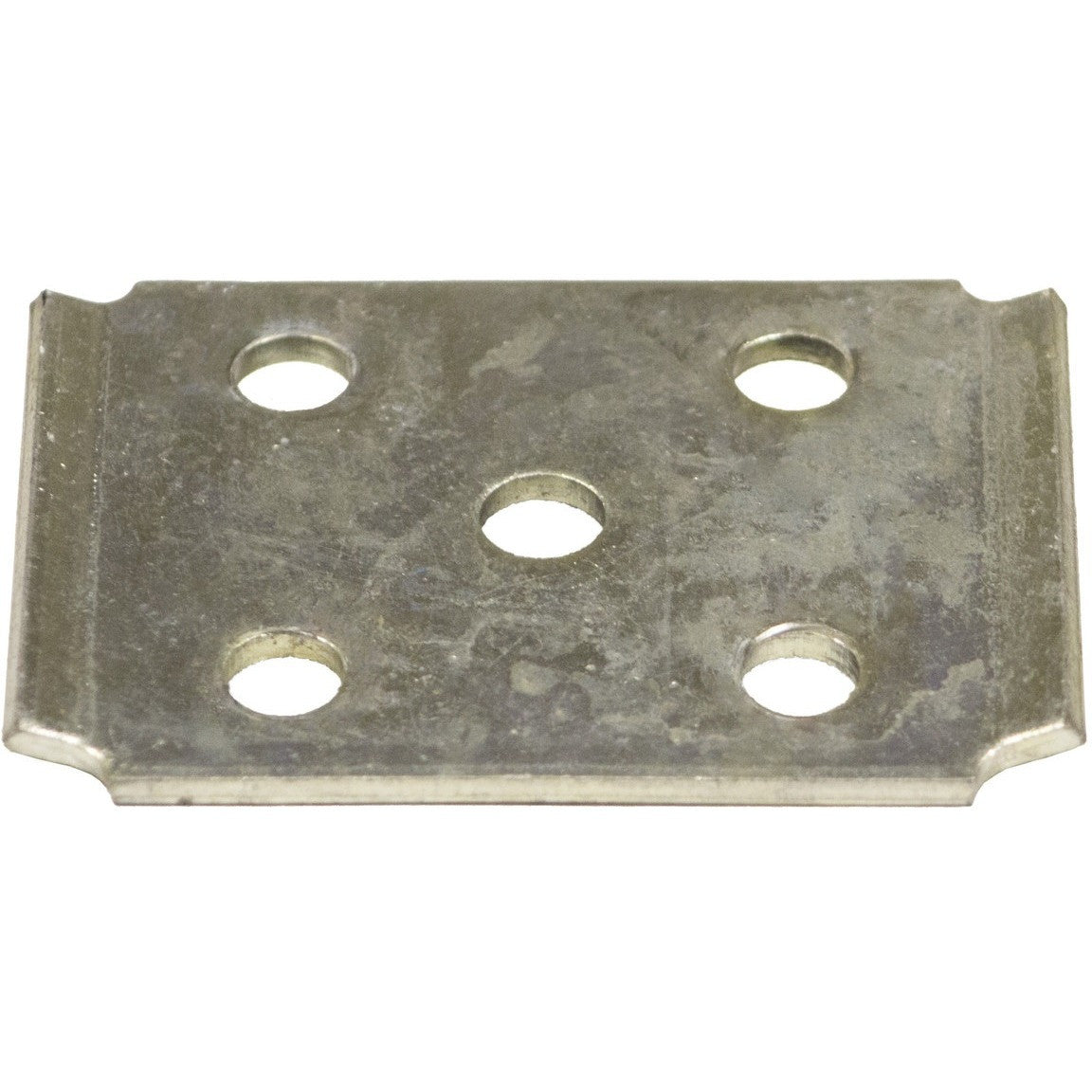

Axle Tie Plate, Zinc-Plated for 2" Square Tubing Trailer Axles (Powder Coat, up to 2500lb Axles)
$10.50
Axle Tie Plate, Zinc-Plated for 2" Square Axle Tubing (Powder Coat, up to 2500lb Axles)
This item is part of the BATIE190Z Zinc Tie Plate Kit used to mount 5-Leaf Slipper Springs to 2500 lb Black Powder Coated Trailer Axles.
MODEL: CFAXLE-TIEPLATE(5-Z)
MPN: 012-070-51 or 012-BATIE190Z or BATIE109Z
Axle Size: 2" x 2" Square Axle
U-Bolt Size: 1/2"-13 x 2.06" x 4.31"
Dimensions: 4.49" x 3.5"
Tube Width: 2"
Spring Width: 1-3/4"
Hole Diameter: 9/16"
U-Bolt Finish: Zinc
Plate Finish: Zinc
