JBT-1600 Parts

General

Winch Poly Bow Roller Assembly

This kit is part of every Winch Assembly used on every PWT, and Jon Boat Trailer model.

Materials Include:

1 – Galvanized Bow Stop Bracket

1 – 3/8″-16 x 3.75″ Zinc Hex Head Cap Bolt

1 – 3/8″-16 Zinc Hex Flange Top Lock Nut

1 – 1/2″-13 x 4.5″ Zinc Hex Head Cap Bolt

1 – 1/2″-13 Zinc Top Lock Nut

1 – 3″ Amber Poly Bow Roller

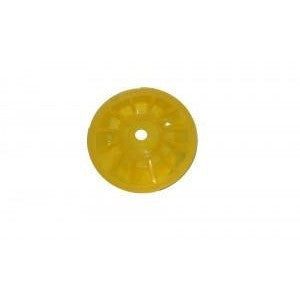

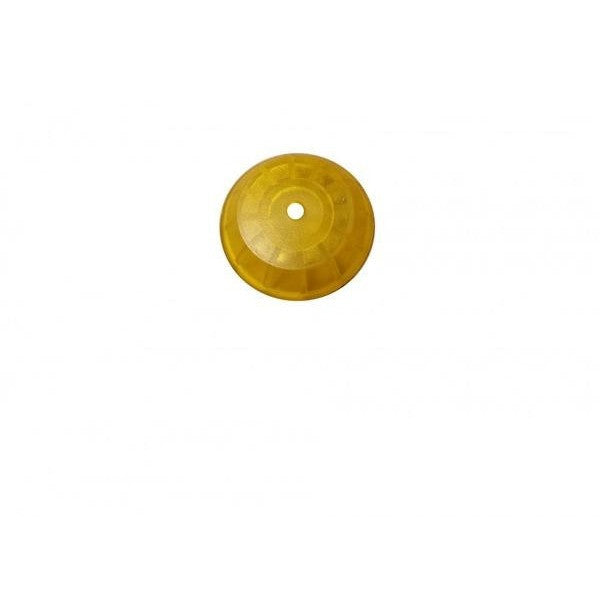

2 – 3″ Amber Poly Bow Roller Bell End

2 – 1/2″- Zinc Flat Washer

MODEL: CFASSM-WNCHRLR(3)

Used on

General

3/8"-16 Zinc Hex Flange Top Lock Nut Zinc

This item is part of the:

– 1000B - Bunk Mounting Kit

– 2212B - Fender Mounting Kit

– 2213B - Fender Mounting Kit

– Winch Poly Bow Roller Assembly

– Pontoon Boat Trailer Winch Assembly

MODEL: CFNUT3/8LOCKZ

Used on

ALL COM-FAB TRAILER MODELS

General

Galvanized Bow Stop Bracket

This item is part of the Winch Poly Bow Roller Assembly used on every type of winch stand for all Jon Boat, and PWT trailer models.

MODEL: CFBRKTWNCHRLR

Used on

General

3" Poly Bow Roller Assembly

This is a section of the Winch Poly Bow Roller Assembly.

Materials Include:

1 – 3″ Poly Bow Roller
2 – 3″ Poly Bow Roller Bell End
1 – 1/2″-13 x 4.5″ Zinc Bolt
2 – 1/2″ Zinc Flat Washer
1 – 1/2″-13 Top Lock Nut

MODEL: CFASSM-POLYRLR(3)

Used on

General

5″ Poly Keel Roller Assembly for 3" Wide Trailer

Materials Included:

1 – 5″ Amber Poly Keel Roller

2 – 12.5″ Galvanized Adjustable Keel Roller Bracket

1 – 1/2″-16 x 6″ Zinc Hex Head Cap Bolt

2 – 3/8″-16 x 3.75″ Zinc Hex Head Cap Bolt

2 – 1/2″ USS Zinc Plated Washer

1 – 1/2″ Zinc Top Lock Nut

2 – 3/8″ Zinc Hex Flange Top Lock Nut

MODEL: CFKEELRLRASSM

Used on

General

12.5" Galvanized Adjustable Keel Roller Bracket

Two of these are used with:

1 – 5" Poly Keel Roller
1 – 1/2″ Zinc Top Lock Nut

to create Keel Poly Roller Assemblies for JBT-1600 Frames.

TIE DOWN MODEL: #44017

MODEL: CFBRKTKEEL

Used on
