1500 lb PWC Trailer Axle w/ 545 Hubs and Springs, Galvanized

*NOTE: If your trailer is older than 2006, call before ordering to ensure you receive the correct axle*

Materials Include:

1 - 44.5" x 1.5" x 1.5" x 11 Gauge Galvanized Axle Tubing

2 - Galvanized 5-Bolt Hub Assembly

2 - 3-Leaf Slipper Springs (750 lb)

1 - Galvanized Tie Plate Kit

This item is mounted to the PWT-1000G, and PWT-1100G trailer models with a Galvanized Axle Mounting Kit.

MODEL: CFAXLE1500G

Specifications

Tubing: 1.5" Galvanized Square Axle

Load Rating: 1500 lb

Hub Face: 50.5"

Spring Center: 41.188"

Overall Length: 56"

Bearing Size: 1-1/16"

Used on

General

1500 lb PWC Trailer 545 Axle w/ Hubs and Springs, Powder Coat Black

*NOTE: if your trailer is older than 2006, call before ordering to ensure you receive the correct axle.*

Materials Include:

1 - 44.5" x 1.5" x 1.5" x 11 Gauge Black Powder Coated Axle Tubing

2 - Black Powder Coated 5-Bolt Hub Assembly

2 - 3-Leaf Slipper Springs (750 lb)

1 - Zinc Tie Plate Kit

This item is mounted to the PWT-1000B, and the PWT-1100B with a Black Powder Coated Axle Mounting Kit.

MODEL: CFAXLE1500B

Specifications

Tubing: 1.5" Black Powder Coated Square Axle

Load Rating: 1500 lb

Hub Face: 50.5"

Spring Center: 41.19"

Overall Length: 56"

Bearing Size: 1-1/16"

Used on

General

2000 lb Extended Galvanized PWC Trailer Axle w/ 545 Hubs and Springs

*This item is not shipped! Pickup only from our location at 2375 Pleasantdale Rd. Atlanta, GA 30340*

*NOTE: if your trailer is older than 2006, call before ordering to ensure you receive the correct axle.*

Materials Include:

1 - 84.45" x 1.5" x 1.5" x 11 Gauge Galvanized Axle Tubing

2 - Galvanized 5-Bolt Hub Assembly

2 - 4-Leaf Slipper Springs (1250 lb)

1 - Galvanized Tie Plate Kit

This item is mounted to the PWT-2212G trailer model with a Galvanized Axle Mounting Kit, and to the PWT-2212B trailer model with a Black Powder Coated Axle Mounting Kit

MODEL: CFAXLE2000G-EXTENDED

Specifications

Tubing: 1.5" Galvanized Square Axle

Load Rating: 2000 lb

Hub Face: 91.5"

Spring Center: 81.5"

Overall Length: 56"

Bearing Size: 1-1/16"

Used on

General

3-Leaf Slipper Springs 750 lb Maximum Capacity (Qty 2)

- This item is mounted to the 1500 lb Galvanized Trailer Axle, as well as the 1500 lb Extended Galvanized Trailer Axle with a Galvanized Tie Plate Kit.

- This item is mounted to the 1500 lb Black Powder Coated Trailer Axle with a Zinc Tie Plate Kit.

MODEL: CFAXLE-LSPRNG(3-SF)

MPN: TDE 13087 or Dexter 072-13087

Note: Springs will be replaced with Dexter 072-119-00 750lb 3-Leaf Springs in the near future.

Specifications

Length: 24.63"

Leaf Width: 1.75"

Arch Height: 4.50"

Bushing Type: Nylon

Used on

General

1000 lb PWC Trailer Axle w/ Hubs and Springs, Galvanized

*NOTE: if your trailer is older than 2006, call before ordering to ensure you receive the correct axle.*

Materials Include:

1 - 44.5" x 1.5" x 1.5" x 11 Gauge Galvanized Axle Tubing

2 - Galvanized 5-Bolt Hub Assembly

2 - 2-Leaf Slipper Spring (550 lb)

1 - Zinc Tie Plate Kit

This item is mounted to the PWT-800G, and all Jon Boat Trailer models with a Galvanized Axle Mounting Kit.

MODEL: CFAXLE1000G

Specifications

Tubing: 1.5" Galvanized Square Axle

Load Rating: 1000 lb

Hub Face: 50.5"

Spring Center: 41.188"

Overall Length: 56"

Bearing Size: 1-1/16"

Used on

General

1000 lb PWC Trailer Axle w/ Hubs and Springs, Powder Coat Black

*NOTE: if your trailer is older than 2006, call before ordering to ensure you receive the correct axle.*

Materials Include:

1 - 44.5" x 1.5" x 1.5" x 11 Gauge Black Powder Coated Axle Tubing

2 - Black Powder Coated 5-Bolt Hub Assembly

2 - 2-Leaf Slipper Spring (550 lb)

1 - Zinc Tie Plate Kit

This item is mounted to the PWT-800B with a Black Powder Coated Axle Mounting Kit.

MODEL: CFAXLE1000B

Specifications

Tubing: 1.5" Black Powder Coated Square Axle

Load Rating: 1000 lb

Hub Face: 50.5"

Spring Center: 41.188"

Overall Length: 56"

Bearing Size: 1-1/16"

Used on

PWT-800B

General

2-Leaf Slipper Springs w/ Radius 550 lb Maximum Capacity (Qty 2)

This item is mounted to the 1000 lb Galvanized Trailer Axle, and the 1000 lb Black Powder Coated Trailer Axle using a Zinc Tie Plate Kit.

TIE DOWN MODEL: #13070

MODEL: CFAXLE2-LSPRNG(SL)

MPN: TDE 13070 or Dexter 072-13070

Specifications

Length: 24.63"

Leaf Width: 1.75"

Arch Height: 4.50"

Bushing Type: Nylon

Used on

General

2500 lb PWC Trailer Axle w/ 545 Hubs and Springs, Galvanized

*This item is not shipped! Pickup only from our location at 2375 Pleasantdale Rd. Atlanta, GA 30340*

*NOTE: if your trailer is older than 2006, call before ordering to ensure you receive the correct axle.*

Materials Include:

1 - 83" x 2" x 2" x 3/16" Gauge Galvanized Axle Tubing

2 - Galvanized 5-Bolt Hub Assembly

2 - 5-Leaf Slipper Springs (1,250 lb)

1 - BATIE190G Tie Plate Kit

This item is mounted to the PWT-2213G, and PWT-2214G trailer models with a Galvanized Axle Mounting Kit.

MODEL: CFAXLE2500G

Specifications

Tubing: 2" Galvanized Square Axle

Load Rating: 2500 lb

Hub Face: 93.5"

Spring Center: 83"

Overall Length: 98.5

Bearing Size: 1-1/16"

Used on

General

2500 lb PWC Trailer Axle w/ 545 Hubs and Springs, Powder Coat Black

*This item is not shipped! Pickup only from our location at 2375 Pleasantdale Rd. Atlanta, GA 30340*

*NOTE: if your trailer is older than 2006, call before ordering to ensure you receive the correct axle.*

Materials Include:

1 - 83" x 2" x 2" x 3/16" Gauge Black Powder Coated Axle Tubing

2 - Black Powder Coated 5-Bolt Hub Assembly

2 - 5-Leaf Slipper Springs (1,250 lb)

1 - BATIE190Z Zinc Tie Plate Kit

This item is mounted to the PWT-2213B, and PWT-2214B trailer models with a Black Powder Coated Axle Mounting Kit.

MODEL: CFAXLE2500B

Specifications

Tubing: 2" Black Powder Coated Square Axle

Load Rating: 2500 lb

Hub Face: 93.5"

Spring Center: 83"

Overall Length: 98.5"

Bearing Size: 1-1/16"

Used on

General

5-Leaf Slipper Springs 1,250 lb Maximum Capacity (Qty 2)

- This item is mounted to the 2500 lb Galvanized Trailer Axle with a BATIE190G Galvanized Tie Plate Kit.

- This item is mounted to the 2500 lb Black Powder Coated Trailer Axle with a BATIE190Z Zinc Tie Plate Kit.

MODEL: CFAXLE5-LSPRNG(SF)

MPN: Dexter 72-13086 or TDE 13086

Specifications

Length: 24.63"

Leaf Width: 1.75"

Arch Height: 4.50"

Bushing Type: Nylon

Used on

General

2900 lb Idler Trailer Axle w/ 545 Hubs and Springs, Galvanized

*This item is not shipped! Pickup only from our location at 2375 Pleasantdale Rd. Atlanta, GA 30340*

*NOTE: if your trailer is older than 2006, call before ordering to ensure you receive the correct axle.*

Materials Include:

1 - 80.375" x 2" x 2" x .17" Gauge Galvanized Axle Tubing

2 - Galvanized 5-Bolt Hub Assembly

2 - 3-Leaf Double Eye Springs (1850 lb)

1 - 7000# Galvanized Tie Plate Kit

- This item is used on all Tandem, and Single Axle Non-Brake Setup Pontoon Boat Trailers.

- It can be mounted to a Single Axle Pontoon Boat Trailer Fender with a Pontoon Boat Trailer Single Axle Mounting Kit.

- Two of them can be mounted to Tandem Axle Pontoon Boat Trailer Fenders with a Pontoon Boat Trailer Tandem Axle Mounting Kit

**Some states require brakes on all axles and/or wheels. please refer to local laws when placing your order. it is up to the individual dealer to stay within the guidelines as set by the legal authorities.

MODEL: CFAXLE2900G(IDLER)

Specifications

Tubing: 2" Galvanized Square Axle

Load Rating: 2900 lb

Hub Face: 87"

Spring Center: 74"

Overall Length: 92"

Bearing Size: 1-3/8" x 1-1/16"

Optional for

General

3/8"-16 x 1.56" x 3.63" U-Bolt, Galvanized - For Standard 1.5" SQ Tubing Axles

This item is part of the Galvanized Tie Plate Kit used to mount 3-Leaf Slipper Springs to Galvanized 1.5" Square Axle Tubing.

MODEL: CFAXLE-UBLT(1.5SQ-G)

MPN: TDE 83002G

Used on

General

Axle Tie Plate, Galvanized for 1.5" Square Tubing Trailer Axles (up to 2000lb Axles)

This item is part of the Galvanized Axle Tie Plate Kit used to mount 3-Leaf Slipper Springs to 1500 lb Galvanized Trailer Axles, and to 1500 lb Extended Galvanized Trailer Axles.

TIE DOWN MODEL: #44556G

MODEL: CFAXLE-TIEPLATE(3-G)

MPN: TDE 44556G or Dexter 012-44556

Specifications

Axle Size: 1-1/2" Square Axle

U-Bolt Size: 3/8"-16 x 1.56 x 3.63

Dimensions: 3" x 3" x 3/16"

Tube Width: 2"

Spring Width: 1-3/4"

Hole Diameter: 7/16"

U-Bolt Finish: Galvanized

Plate Finish: Galvanized

Used on

General

3/8"-16 x 1.56" x 3.63" U-Bolt, Zinc-Plated - For Standard 1.5" SQ Tubing Axles

This item is part of the Zinc Axle Tie Plate Kit used to mount 2-Leaf Slipper Springs (550 lb), and 3-Leaf Slipper Springs (750 lb) to 1.5" Square Axle Tubing.

MODEL: CFAXLE-UBLT(1.5SQ-Z)

MPN: TDE 83002-1Z

Used on

General

3/8" Galvanized Split Lock Washer

These are part of the Galvanized Tie Plate Kit used to mount 3-Leaf Slipper Springs to Galvanized 1.5" Square Axle Tubing.

MODEL: CFAXLE-WSHRL(LSPRNG)

Used on

c-General

3/8"-16 Thread Nylock Nut, Zinc-Plated

This item is part of the Zinc Tie Plate Kit used to mount 2-Leaf Slipper Springs (550 lb), and 3-Leaf Slipper Springs (750 lb) to 1.5" Square Axle Tubing.

MODEL: CFAXLE-NUT(3/8NYLOCK-Z)

Used on

General

Axle Tie Plate, Zinc-Plated for 1.5" Square Trailer Axle (Powder Coat, up to 2000lb Axles)

- This item is part of the Zinc Tie Plate Kit used to mount 3-Leaf Slipper Springs (750 lb) to Black Powder Coated 1.5" Square Axle Tubing used on PWT-1000B, and PWT-1100B trailer models.

- The same kit is used to mount 2-Leaf Slipper Springs (550 lb) to Black Powder Coated 1.5" Square Axle Tubing used on the PWT-800 model.

Specifications

Axle Size: 1-1/2" Square Axle

U-Bolt Size: 3/8"-16 x 1.56 x 3.63

Dimensions: 3" x 3" x .21"

Tube Width: 2"

Spring Width: 1-3/4"

Hole Diameter: 7/16"

U-Bolt Finish: Zinc

Plate Finish: Zinc

Used on

General

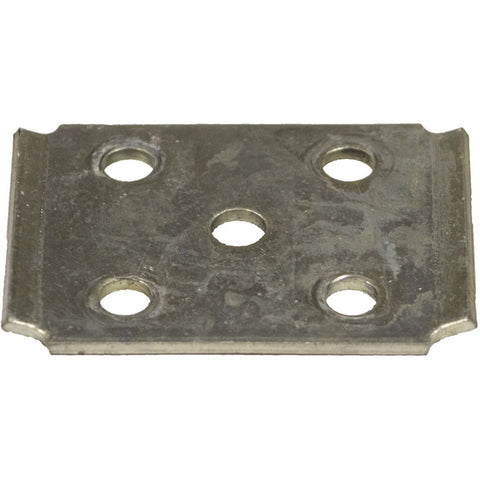

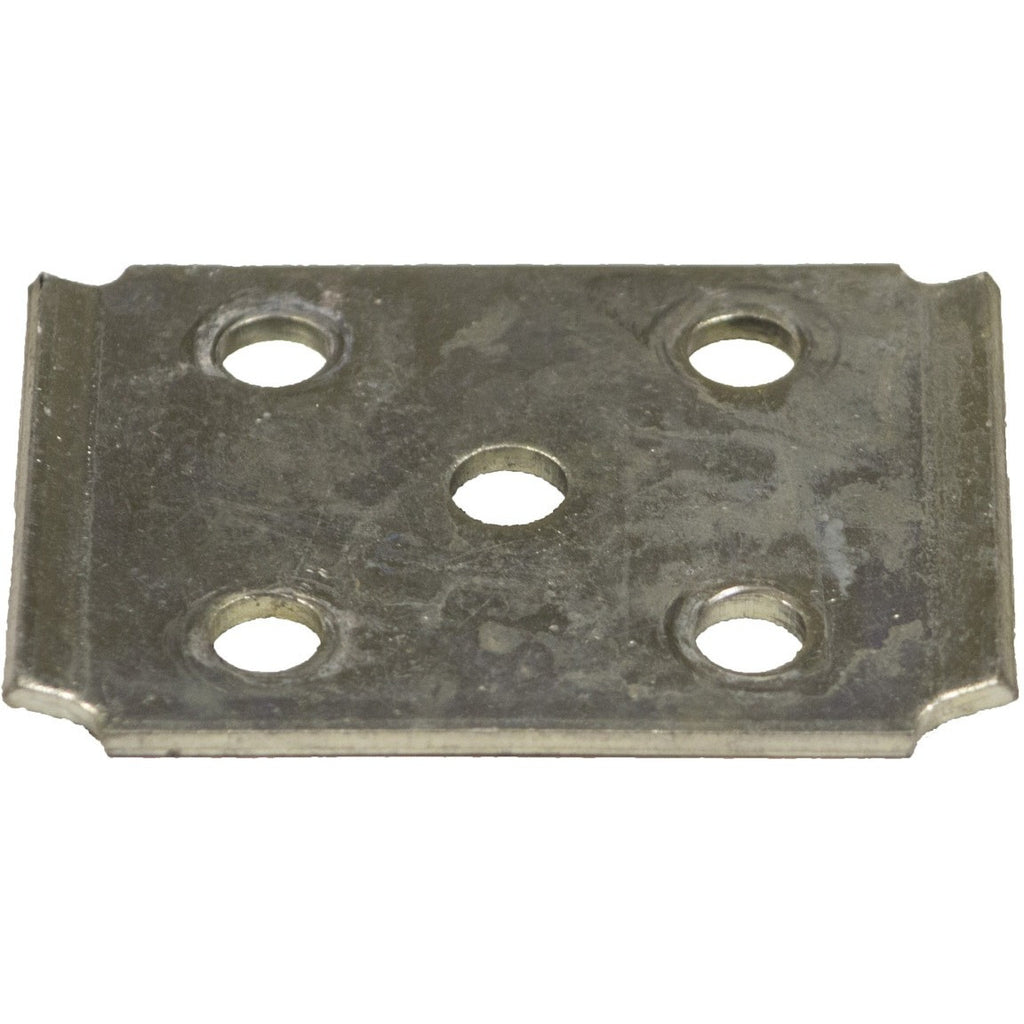

Tie Down BATIE 190G Galvanized Tie Plate for 2" Square Axle Tubing (up to 2500lb Axles)

This item is part of the BATIE190G Galvanized Tie Plate Kit used to mount 5-Leaf Slipper Springs to 2500 lb Galvanized Trailer Axles.

MODEL: CFAXLE-TIEPLATE(5-G)

MPN: 012-070-51 or 012-BATIE190G or BATIE190G

Specifications

Axle Size: 2" x 2" Square Axle

U-Bolt Size: 1/2"-13 x 2.06" x 4.31"

Dimensions: 4.49" x 3.5"

Tube Width: 2"

Spring Width: 1-3/4"

Hole Diameter: 9/16"

U-Bolt Finish: Galvanized

Plate Finish: Galvanized

Used on

General

1/2"-13 x 2.06" x 4.31" U-Bolt, Zinc-Plated - Used on 2" Tubing Axles (up to 3.5K)

This item is part of the BATIE190Z Tie Plate Kit used to secure 5-Leaf Slipper Springs (1,250 lb) to 2" Square Black Powder Coated Axle Tubing. These can also be used with a Tie Down 7000# Zinc Axle Tie Plate.

TIE DOWN MODEL: #84404Z

MODEL: CFAXLE-UBLT(2.0SQ-Z)

MPN: TDE 84404Z

Used on

General

Axle Tie Plate, Zinc-Plated for 2" Square Axle Tubing (Powder Coat, up to 2500lb Axles)

This item is part of the BATIE190Z Zinc Tie Plate Kit used to mount 5-Leaf Slipper Springs to 2500 lb Black Powder Coated Trailer Axles.

MODEL: CFAXLE-TIEPLATE(5-Z)

MPN: 012-070-51 or 012-BATIE190Z or BATIE109Z

Specifications

Axle Size: 2" x 2" Square Axle

U-Bolt Size: 1/2"-13 x 2.06" x 4.31"

Dimensions: 4.49" x 3.5"

Tube Width: 2"

Spring Width: 1-3/4"

Hole Diameter: 9/16"

U-Bolt Finish: Zinc

Plate Finish: Zinc

Used on

General

3/8″- 16 Galvanized Tri-Lock Nut

This item pairs with any 3/8"-16 Thread Galvanized Bolt or U-Bolt.

This item is part of these kits:

– Galvanized Winch Assembly Mounting Kit

– Galvanized Tie Plate Kit for 1.5" Square Axle Tubing

– 1000G - Bunk Mounting Kit

– 2212G - Bunk Mounting Kit

– 2212G - Fender Mounting Kit

– 2213G - Bunk Mounting Kit

– 2213G - Fender Mounting Kit

– Jon Boat Trailer Bunk Mounting Kit

– Jon Boat Trailer Fender Mounting Kit

– Jon Boat Trailer Bow Support Bunk Mounting Kit

– 'River Hawk' Jon Boat Trailer Bunk Mounting Kit

MODEL: CFNUT3/8TRILOCK

Used on

General

7000# Zinc Axle Tie Plate w/ 4.49" x 3.5" Dimensions for 2" Tubing and 1.75" Spring Width

TIE DOWN MODEL: 44849DZ

MODEL: CFAXLE-TIEPLATE(7000-Z)

Specifications

Axle Size: 2" x 2" Square Axle

U-Bolt Size: 1/2"-13 x 2.06" x 4.31"

Dimensions: 4.49" x 3.5"

Tube Width: 2"

Spring Width: 1-3/4"

Hole Diameter: 9/16"

U-Bolt Finish: Zinc

Plate Finish: Zinc

General

1/2"-13 Thread Nylock Nut, Zinc-Plated

This item is part of the BATIE190Z Zinc Tie Plate Kit used to mount 3-Leaf Slipper Springs (750 lb) to Black Powder Coated 2.0" Square Axle Tubing.

MODEL: CFAXLE-NUT(1/2NYLOCK-Z)

Used on

General

7000# Galvanized Axle Tie Plate w/ 4.49" x 3.5" Dimensions for 2" Tubing and 1.75" Spring Width

This item is part of the 7000# Galvanized Tie Plate Kit used to mount Double Eye Leaf Springs on to 3500 lb Hydraulic Disc Brake Trailer Axles, 4250 lb Hydraulic Disc Brake Trailer Axles, or 2900 lb Idler Trailer Axles.

MODEL: CFAXLE-TIEPLATE(7000-G)

MPN: TDE 44849DG

Specifications

Axle Size: 2" x 2" Square Axle

U-Bolt Size: 1/2"-13 x 2.06" x 4.31"

Dimensions: 4.49" x 3.5"

Tube Width: 2"

Spring Width: 1-3/4"

Hole Diameter: 9/16"

U-Bolt Finish: Galvanized

Plate Finish: Galvanized
