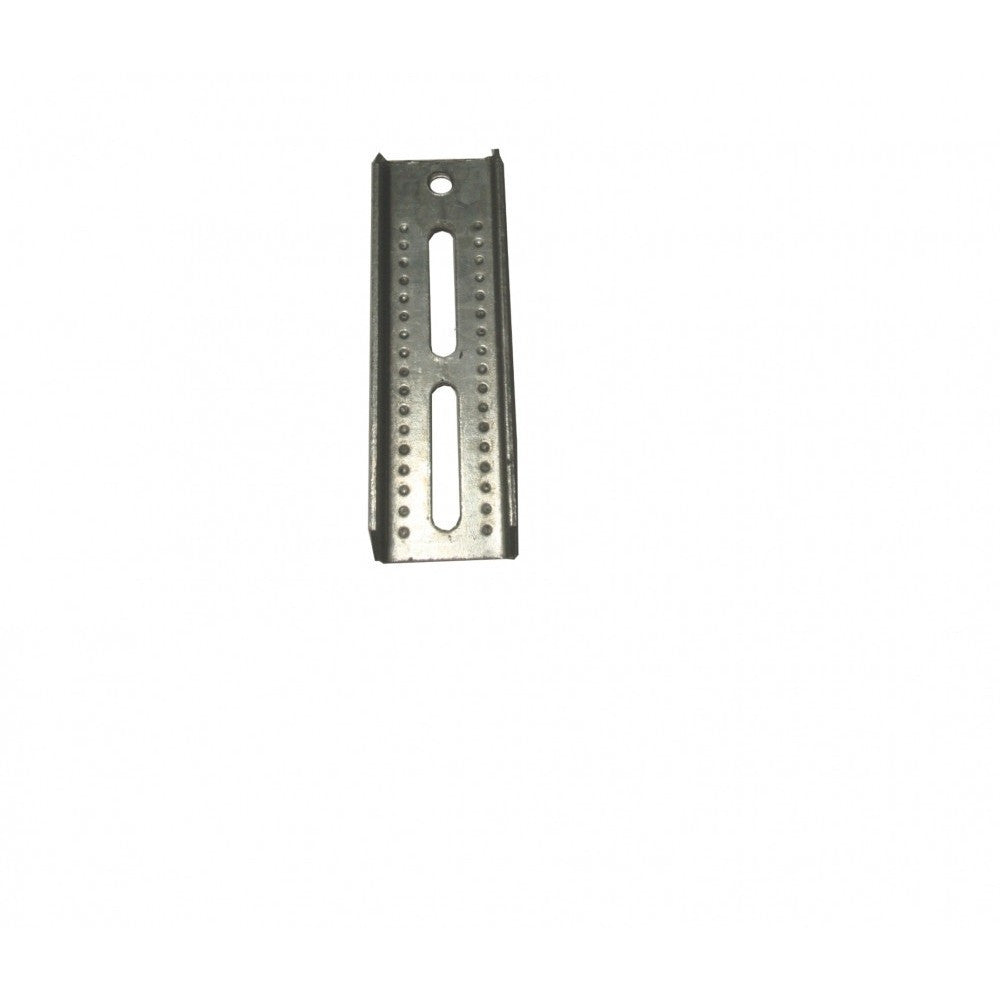

8″ Galvanized Adjustable Bolster Bunk Bracket

General

Dry Launch SP7 Red Tail Light (Passenger Side) - Incandescent

The Dry Launch submersible 7-function passenger side tail light is waterproof with a bulb slide that has built-in dust, and splash guard. It snaps out for easy bulb replacement.

Dimensions:  W = 6"   H = 3.5"   D = 2-1/4"

Materials Include:

2 - 1/4″-18 Tail Light Bolt

2 - 1/4"-18 Zinc Nut

MODEL: CFLIGHTREAR(R)-INC(DL)

Optional for

ALL COM-FAB TRAILER MODELS

General

2″ Steel Super Lube Grease Dust Cap & Plug for Axle Hub

This item is a part of all hub assemblies and comes as a pair.

Galvanized 5-Bolt Hub Assembly

Powder Coated Black 5-Bolt Hub Assembly

TIE DOWN MODEL: #17093

MODEL: CFAXLE-CAP&PLUG

Used on

ALL COM-FAB TRAILER MODELS

General

Dry Launch SP7 Red Tail Light (Driver Side) - Incandescent

The Dry Launch submersible 8-function driver side tail light is waterproof with a bulb slide that has a built-in dust and splash guard. It snaps out for easy bulb replacement.

Dimensions:  W = 6"   H = 3.5"   D = 2-1/4"

Materials Include:

2 - 1/4″ - 18 Tail Light Bolt

2 - 1/4" -18 Zinc Nut

MODEL: CFLIGHTREAR(L)-INC(DL)

Optional for

ALL COM-FAB TRAILER MODELS

General

Galvanized Side Mount Spare Tire Carrier

• This item is optional for all of our Galvanized Trailer models.
• It can accommodate wheels from 10" to 16.5" with a spare tire.
• It fits all 4 and 5 lug wheels with 4" and 4.5" diameter hole patterns.
• The galvanized finish provides long lasting protection.
• The item can mount to trailer frames up to 3" wide and 4" high.

*Used on Galvanized Trailer Models Only

TIEDOWN MODEL: #86098

MODEL: CFSTB-SIDE(G)

Installation Instructions

1. Using the spare tire carrier and spare tire as a guide, determine a suitable mounting location on trailer frame.

2. Slide U-bolt around the frame and through the holes in tire carrier.

3. Mount with flat washers, lock washers and nuts provided.

4. Using the spare tire to determine the correct holes to use, place the carriage bolts provided for mounting the spare tire in the holes of the rectangular plate. Bolt heads should be on the back side of the tire carrier. Secure bolts with “star” washers.

5. The mounting plate will accommodate several sizes of frames by using the various hole patterns.

6. Check position of the tire mount for proper clearance with the spare tire before tightening bolts.

7. Mount spare tire with 1/2" bolt, washers and hex nuts provided.

Optional for

ALL GALVANIZED TRAILER MODELS
