Heavy Duty Pontoon Trailer Winch Assembly Mounting Kit for 5"x3" Trailer Tongues

General

Zinc U Bolt Winch Assembly Mounting Kit for Black Powder Coated Trailers

This kit has all of the requisite materials needed to mount a Black Powder Coated Winch Assembly onto any Black Powder Coated PWT trailer model.

Materials Include:

2 – 3/8″-16 x 3" x 4.5″ Zinc U-Bolt

2 – 5" x 1.25" x .25" Zinc Flat Plate

4 – 3/8″-16 Zinc Plated Serrated Flange Nuts

MODEL: CFWNCHKIT-(PWC-Z)

Used on

General

32″ Galvanized Winch Assembly w/ Dutton-Lainson 600LB Winch

This assembly includes:

- 32" Galvanized Winch Post

- Dutton-Lainson 600 lb Capacity Crank Winch

- Winch Poly Bow Roller Assembly

- Galvanized Winch Assembly Mounting Kit

When mounted, the standard height for the bow roller is 18", but it can be adjusted to accommodate your particular boat.

MODEL: CFWNCH2213

Used on

General

Galvanized Winch Assembly Mounting Kit

This kit contains all of the requisite materials needed to mount a Galvanized Winch Assembly onto all Galvanized PWT trailer models.

Materials Include:

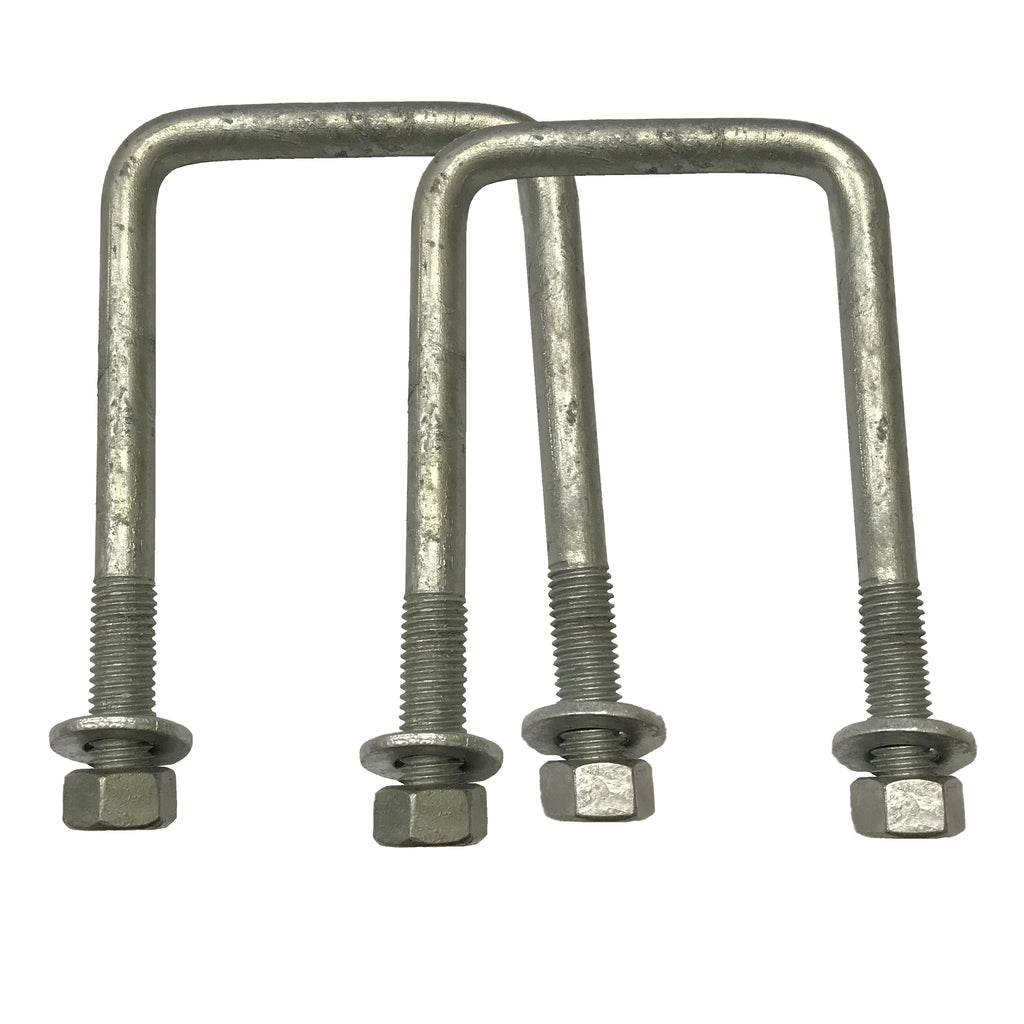

2 – 3/8″ x 3.06" x 4.5″ Galvanized U-Bolt

2 – 5" x 1.25" x .25" Galvanized Flat Plate

4 – 3/8″ Galvanized USS Flat Washer

4 – 3/8″-16 Galvanized Tri-Lock Hex Nuts

MODEL: CFWNCHKITG

Used on

General

14″ Galvanized Winch Assembly w/ DL 600 lb Winch

This assembly includes a 14" Galvanized Winch Post, a Dutton-Lainson 600 lb Capacity Crank Winch, a Winch Poly Bow Roller Assembly, and a Galvanized Winch Assembly Mounting Kit. When mounted, the standard height for the bow roller is 12", but it can be adjusted to accommodate your particular boat.

Mounting Hardware Includes:

4 – 3/8″-16 Galvanized Tri-Lock Hex Nuts

MODEL: CFWNCH1000G

Used on
