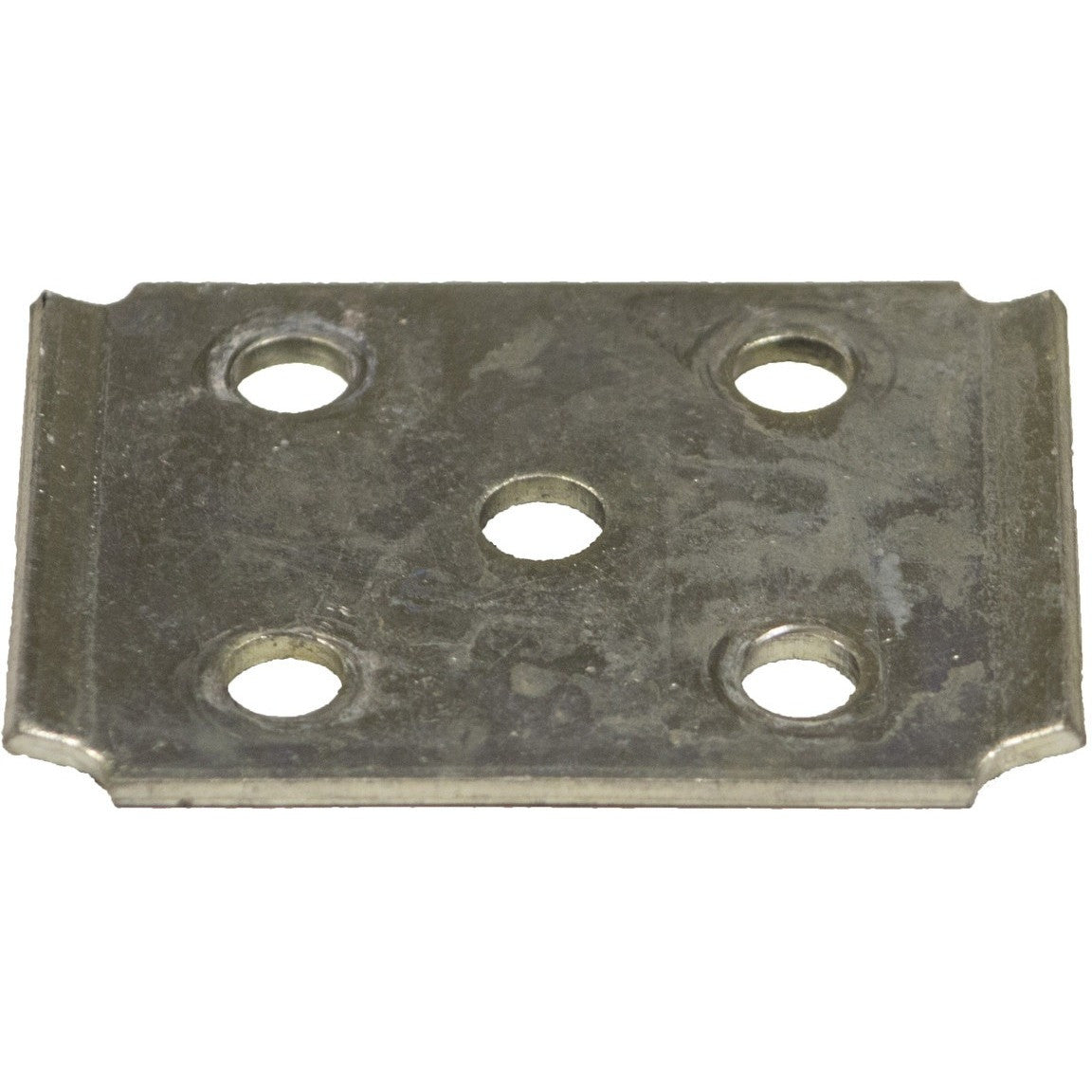

Axle Tie Plate, Galvanized for 2" Square Tubing Trailer Axles (up to 2500lb Axles)
$12.25
Tie Down BATIE 190G Galvanized Tie Plate for 2" Square Axle Tubing (up to 2500lb Axles)
This item is part of the BATIE190G Galvanized Tie Plate Kit used to mount 5-Leaf Slipper Springs to 2500 lb Galvanized Trailer Axles.
MODEL: CFAXLE-TIEPLATE(5-G)
MPN: 012-070-51 or 012-BATIE190G or BATIE190G
Axle Size: 2" x 2" Square Axle
U-Bolt Size: 1/2"-13 x 2.06" x 4.31"
Dimensions: 4.49" x 3.5"
Tube Width: 2"
Spring Width: 1-3/4"
Hole Diameter: 9/16"
U-Bolt Finish: Galvanized
Plate Finish: Galvanized
