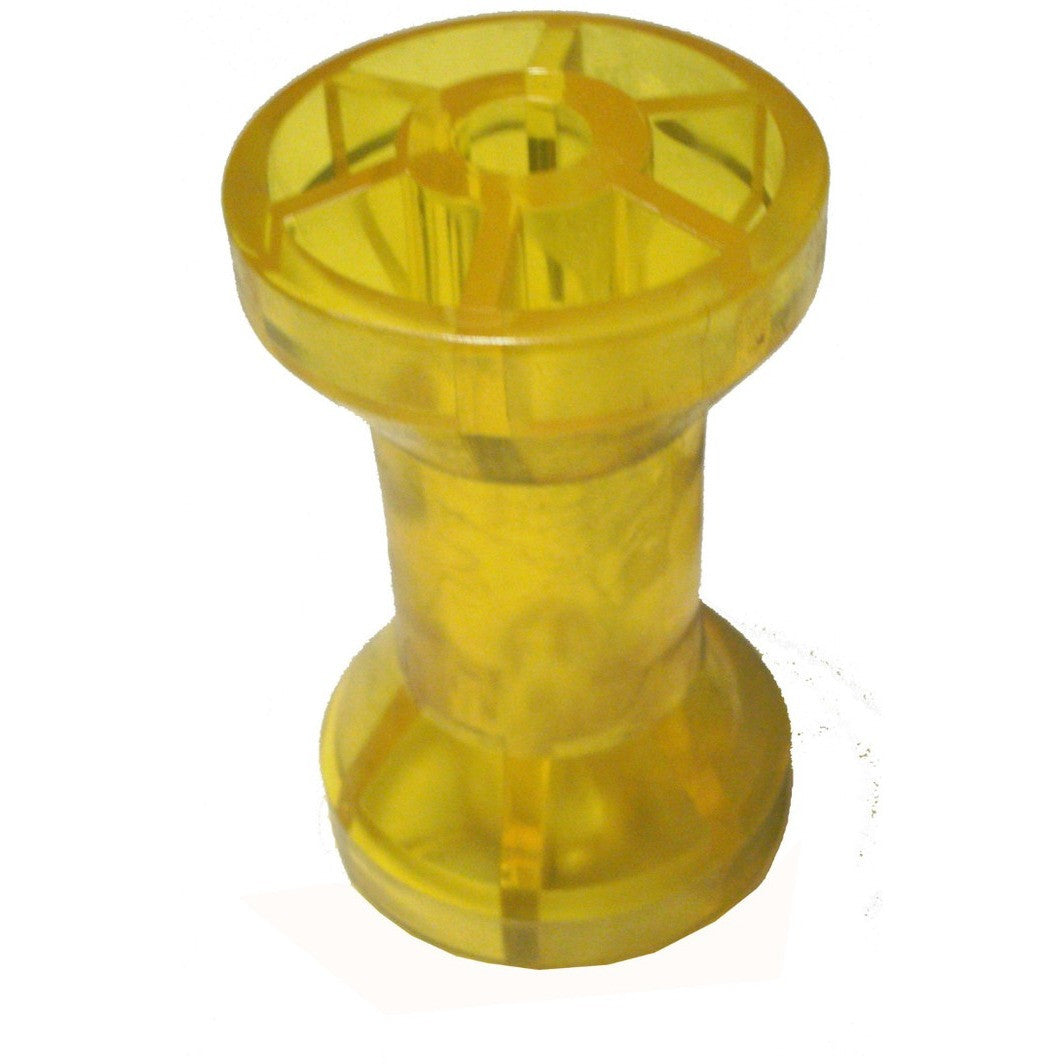

5″ Amber Poly Keel Roller

General

Dry Launch SP7 Red Tail Light (Passenger Side) - Incandescent

The Dry Launch submersible 7-function passenger side tail light is waterproof with a bulb slide that has built-in dust, and splash guard. It snaps out for easy bulb replacement.

Dimensions:  W = 6"   H = 3.5"   D = 2-1/4"

Materials Include:

2 - 1/4″-18 Tail Light Bolt

2 - 1/4"-18 Zinc Nut

MODEL: CFLIGHTREAR(R)-INC(DL)

MPN: SP7RBX-99X1

Optional for

ALL COM-FAB TRAILER MODELS

General

Dry Launch SP7 Red Tail Light (Driver Side) - Incandescent

The Dry Launch submersible 8-function driver side tail light is waterproof with a bulb slide that has a built-in dust and splash guard. It snaps out for easy bulb replacement.

Dimensions:  W = 6"   H = 3.5"   D = 2-1/4"

Materials Include:

2 - 1/4″ - 18 Tail Light Bolt

2 - 1/4" -18 Zinc Nut

MODEL: CFLIGHTREAR(L)-INC(DL)

MPN: SP7RBX-99X1

Optional for

ALL COM-FAB TRAILER MODELS

General

Galvanized Side Mount Spare Tire Carrier

• This item is optional for all of our Galvanized Trailer models.
• It can accommodate wheels from 10" to 16.5" with a spare tire.
• It fits all 4 and 5 lug wheels with 4" and 4.5" diameter hole patterns.
• The galvanized finish provides long lasting protection.
• The item can mount to trailer frames up to 3" wide and 4" high.

*Used on Galvanized Trailer Models Only

TIEDOWN MODEL: #86098

MODEL: CFSTB-SIDE(G)

Installation Instructions

1. Using the spare tire carrier and spare tire as a guide, determine a suitable mounting location on trailer frame.

2. Slide U-bolt around the frame and through the holes in tire carrier.

3. Mount with flat washers, lock washers and nuts provided.

4. Using the spare tire to determine the correct holes to use, place the carriage bolts provided for mounting the spare tire in the holes of the rectangular plate. Bolt heads should be on the back side of the tire carrier. Secure bolts with “star” washers.

5. The mounting plate will accommodate several sizes of frames by using the various hole patterns.

6. Check position of the tire mount for proper clearance with the spare tire before tightening bolts.

7. Mount spare tire with 1/2" bolt, washers and hex nuts provided.

Optional for

ALL GALVANIZED TRAILER MODELS

General

TecNiq-T86 7 Function 6" Box LED Passenger Side Tail Light w/ Pigtail

• These are optional for all Trailer Models.
• Multi-Function 6" Box Tail Light
• Urethane Potting w/ Guaranteed Circuit Board Protection
• Dust and water proof with hermetic seal
• Durable impact resistant lens
• Meets all FMVSS 108 requirements for narrow and wide vehicles
• Reliable performance over 100,000 hours
• Fits standard mounting as a direct replacement
• Functions include: Stop, Turn, Tail, Clearance, Side marker, Side Reflector,
  Rear Reflector, and License Plate Light (Left)

Includes two 7/16" bolts w/ nuts for mounting.

MODEL: CFLIGHTREAR(R)-LED(TEC)

MPN: T86-RR2RG-1

Used on

ALL COM-FAB TRAILER MODELS
