JBT-1600 Parts

General

Galvanized Angular Swivel Bracket - 7/16″ Top Hole

These are used to mount bunk boards onto all Jon Boat, and PWT Trailer models.

This item is part of these kits:

- 1000B - Bunk Mounting Kit

- 1000G - Bunk Mounting Kit

- 2212B - Bunk Mounting Kit

- 2212G - Bunk Mounting Kit

- 2213B - Bunk Mounting Kit

- 2213G - Bunk Mounting Kit

- Jon Boat Trailer Bunk Mounting Kit

- Jon Boat Trailer Bow Support Mounting Kit

- 'River Hawk' Jon Boat Trailer Bunk Mounting Kit

MODEL: CFBRKTSWIVEL

Used on

General

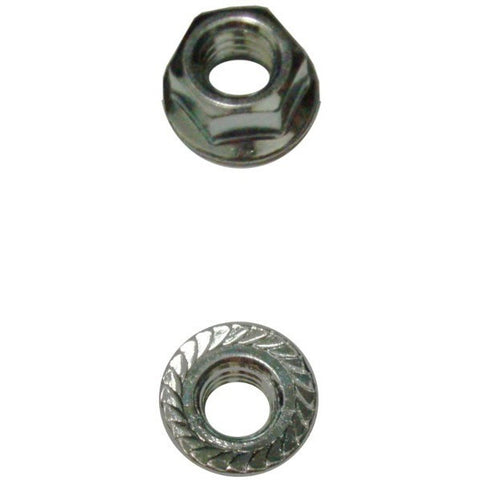

3/8"-16 Zinc Hex Flange Top Lock Nut Zinc

This item is part of the:

– 1000B - Bunk Mounting Kit

– 2212B - Fender Mounting Kit

– 2213B - Fender Mounting Kit

– Winch Poly Bow Roller Assembly

– Pontoon Boat Trailer Winch Assembly

MODEL: CFNUT3/8LOCKZ

Used on

ALL COM-FAB TRAILER MODELS

General

5/16″ x 1-1/2″ Galvanized Hex Head Lag Screw

It is used for mounting Bunk Boards to Galvanized Angular Swivel Brackets, and Pontoon Boat Trailer Bunk Brackets on all trailer models.

MODEL: CFSCRWLAG-5/16-0150

Used on

ALL COM-FAB TRAILER MODELS

General

2 x 4 x 6′ Carpeted Black Marine Bunk Board

These are used on PWT-1000, PWT-1100, PWT-2213, PWT-2214, and all Jon Boat Trailer models.

1000B - Bunk Mounting Kit

1000G - Bunk Mounting Kit

2213B - Bunk Mounting Kit

2213G - Bunk Mounting Kit

Jon Boat Trailer Bunk Mounting Kit

MODEL: CFBUNKBRDC-6FT

Used on

General

3/8″-16 x 3.06" x 2.38″ Galvanized U-Bolt

This item is a part of these kits:

- 2213G - Bunk Mounting Kit

- 2212G - Bunk Mounting Kit

- 2212G - Fender Mounting Kit

- Jon Boat Trailer Bunk Mounting Kit

- Jon Boat Trailer Fender Mounting Kit

- 'River Hawk' Jon Boat Trailer Bunk Mounting Kit

TIE DOWN MODEL: #83027G

MODEL: CFUBLT3/8X2.38G

Used on

General

Jon Boat Trailer Bow Support Bunk Mounting Kit

These are all of the requisite materials needed to mount a 2″ x 4″ x 2′ Black Marine Carpeted Bow Support Bunk onto all Jon Boat Trailer models.

Materials Include:

1 – 3/8″ x 3" x 4.5″ Galvanized U-Bolt

2 – 8″ Galvanized Adjustable Bolster Bunk Bracket

4 – 3/8″-16 x 1″ Galvanized Hex Head Bolts

2 – Galvanized Angular Swivel Bracket

4– 3/8″-16 Galvanized Tri-Lock Hex Nut

4 – 3/8″ Galvanized Flat Washer

4 – 5/16" x 1-1/2″ Galvanized Hex Head Lag Screw

1 - 5" x 1.25" x .25" Galvanized Flat Plate w/ 9/16" Holes

MODEL: CFBNKKIT-BOWSPRT

Used on

General

2 x 4 x 10′ Black Marine Carpeted Bunk Board

This item is not shipped! Pickup only from our location at 2375 Pleasantdale Rd. Atlanta, GA 30340

These are used as the standard option for JBT-1600 'River Hawk' Trailer models, as well as an upgradeable option for the JBT-1400 model.

'River Hawk' Jon Boat Trailer Bunk Mounting Kit

MODEL: CFBUNKBRDC-10FT

Used on

General

8″ Galvanized Adjustable Bolster Bunk Bracket

This item is part of these kits:

- Jon Boat Trailer Bunk Mounting Kit

- Jon Boat Trailer Bow Support Mounting Kit

- 'River Hawk' Jon Boat Trailer Bunk Mounting Kit

TIE DOWN MODEL: 86130G

MODEL: CFBRKTBLSTR

Used on

General

2 x 4 x 2′ Black Marine Carpeted Bow Support Bunk

This item is mounted with a Jon Boat Trailer Bow Support Bunk Mounting Kit to all Jon Boat Trailer models except the JBT-1600 'River Hawk'.

MODEL: CFBOWSPRTC-2FT

Used on

General

3/8″-16 x 3.06" x 4.5″ Galvanized U-Bolt

This item is part of these kits:

- Galvanized Winch Assembly Mounting Kit

- Jon Boat Trailer Bow Support Bunk Mounting Kit

MODEL: CFUBLT3/8X4.5G

Used on

General

Black Marine Carpet 10.25" Width

$2/ft in 100 ft rolls

- This carpet is used for bunks on all of our PWC Trailer, and Jon Boat Trailer models. It is optional for our Pontoon Trailer models and Canoe/Kayak Angler Kits.

If you are purchasing this carpet it needs to be a foot longer than the board itself.

This carpet comes in these specific sizes as well:

- 5 ft Bunk Board Black Marine Carpet

- 6 ft Bunk Board Black Marine Carpet

- 7 ft Bunk Board Black Marine Carpet

MODEL: CFBNKCOVER-CARPET(10.25)

Used on

Optional for

General

Jon Boat Trailer Bunk Mounting Kit

This kit contains all of the requisite materials needed to mount a 2″ x 4″ x 6′ Black Marine Carpeted Bunk Board onto every Jon Boat Trailer model.

Materials Include:

2 – 3/8″-16 x 3.06" x 2.38″ Galvanized U-Bolt

2 – 8″ Adjustable Bolster Bunk Bracket

2 – 3/8″-16 x 1" Galvanized Hex Head Bolt

2 – Galvanized Angular Swivel Bracket

6 – 3/8″-16 Galvanized Tri-Lock Nut

6 – 3/8″-16 Galvanized Flat Washer

4 – 5/16" x 1-1/2″ Galvanized Hex Head Lag Screw

MODEL: CFBNKKIT-JBT

Used on

General

10" Galvanized Adjustable Bolster Bunk Bracket

These are optional Bolster Brackets for all Jon Boat Trailer models.

Jon Boat Trailer Bunk Mounting Kit

TIE DOWN MODEL: #86131G

MODEL: CFBRKTBLSTR-10

Optional for
