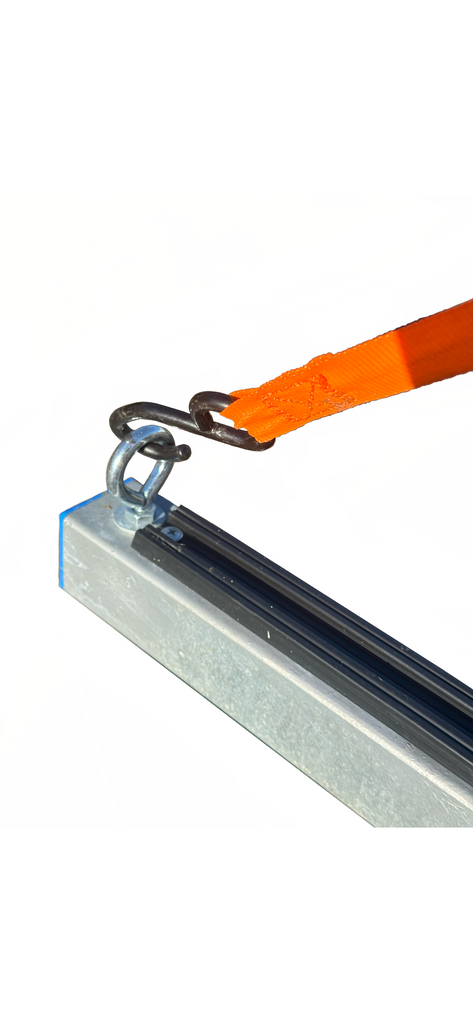

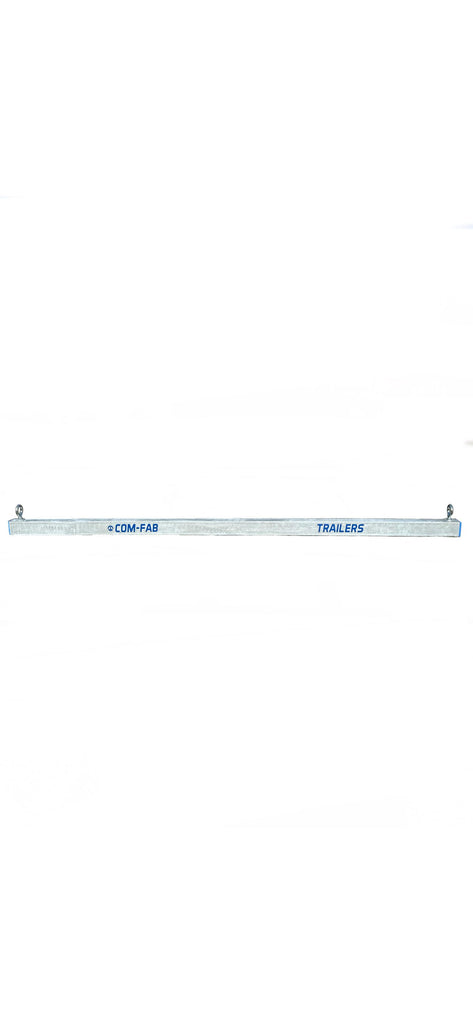

80IN 14GA Galvanized Crossbar

General

2 Capacity Canoe/Kayak Conversion Kit

Universal canoe/kayak trailer conversion kit for up to 2 canoes or 2 kayaks without plastic protective covering.

One size fits all trailer kit:

- Designed to hold 2 kayak/canoes

- Adjustable crossbeam placement to fit a wide range of needs and preferences

- Fits on 1.5", 2", 3" rectangular and/or square tubing where applicable

- 2x2x11 gauge upright bracing for universal fit

- 2x2x14 gauge cross braces

This is a conversion kit only and requires a trailer to mount.

Click the following link for Assembly Instructions

https://cdn.shopify.com/s/files/1/1557/3371/files/Canoe_Kayak_Kit_Assembly_Instructions.pdf

Specifications

Kayak Setup - CFKIT-KAY(2)

• 2x 24" Uprights
• 2x 60" Crossbeams with Strap Assist and End Caps
• 2x Mounting Bracket - 2" Channel w/ 1/2" Hexagonal Holes
• 4x Zinc Bolt and Nut to Tighten Crossbeam to Mounting Bracket
• 4x Zinc U Bolts with Washer and Nut for Securing Crossbeams
• 4x Galvanized U Bolts with Washer and Nut for Securing Uprights to 1.5" & 2" Tubing

• 4x Galvanized U Bolts with Washer and nut for Securing Uprights to 3" wide Tubing
• 4x Turned Eye Bolts for use with Tie Downs
• 8x Galvanized Lock Nuts for locking in Eye Bolts

Canoe Setup - CFKIT-CAN(2)

• 2x 24" Uprights
• 2x 80" Crossbeams with Strap Assist and End Caps
• 2x Mounting Bracket - 2" Channel w/ 1/2" Hexagonal Holes
• 4x Zinc Bolt and Nut to Tighten Crossbeam to Mounting Bracket
• 4x Zinc U Bolts with Washer and Nut for Adjusting and Securing Crossbeams
• 4x Galvanized U Bolts with Washer and Nut for Securing Uprights to 1.5" & 2" Tubing

• 4x Galvanized U Bolts with Washer and nut for Securing Uprights to 3" wide Tubing
• 4x Turned Eye Bolts for Securing Tie Downs
• 8x Galvanized Lock Nuts for Securing Eye Bolts

Click the following link for Assembly Instructions

https://cdn.shopify.com/s/files/1/1557/3371/files/Canoe_Kayak_Kit_Assembly_Instructions.pdf

General

4 Capacity Canoe/Kayak Conversion Kit

Universal canoe/kayak trailer conversion kit for up to 4 kayaks or 4 canoes without plastic protective covering.

One size fits all trailer kit:

- Designed to hold 4 regular sized kayaks or canoes

- Fits on 1.5", 2", 3" rectangular and/or square tubing where applicable.

- 2x2x11 gauge upright bracing for universal fit.

- 2x2x14 gauge cross braces with stability slides, preventing side-to-side movement. (Optional)

This is a conversion kit only and requires a separate trailer to mount.

Click the following link for Assembly Instructions

https://cdn.shopify.com/s/files/1/1557/3371/files/Canoe_Kayak_Kit_Assembly_Instructions.pdf

Specifications

4 Capacity Normal Kayak Kit - CFKIT-KAY(4S)

• 2x 30" Uprights
• 4x 60" Crossbeams with Strap Assist and End Caps
• 4x Mounting Bracket - 2" Channel w/ 1/2" Hexagonal Holes
• 8x Zinc Bolt and Nut to Tighten Crossbeam to Mounting Bracket
• 8x Zinc U Bolts with Washer and Nut for Securing Crossbeams
• 4x Galvanized U Bolts with Washer and Nut for Securing Uprights to 1.5" & 2" Tubing

• 4x Galvanized U Bolts with Washer and nut for Securing Uprights to 3" wide Tubing
• 8x Turned Eye Bolts for use with Tie Downs
• 16x Galvanized Lock Nuts for locking in Eye Bolts

4 Capacity Tall Kayak Kit - CFKIT-KAY(4T)

• 2x 40" Uprights
• 4x 60" Crossbeams with Strap Assist and End Caps
• 4x Mounting Bracket - 2" Channel w/ 1/2" Hexagonal Holes
• 8x Zinc Bolt and Nut to Tighten Crossbeam to Mounting Bracket
• 8x Zinc U Bolts with Washer and Nut for Securing Crossbeams
• 4x Galvanized U Bolts with Washer and Nut for Securing Uprights to 1.5" & 2" Tubing

• 4x Galvanized U Bolts with Washer and nut for Securing Uprights to 3" wide Tubing
• 8x Turned Eye Bolts for use with Tie Downs
• 16x Galvanized Lock Nuts for locking in Eye Bolts

4 Capacity Normal Canoe Kit - CFKIT-CAN(4S)

• 2x 40" Uprights
• 4x 80" Crossbeams with Strap Assist and End Caps
• 4x Mounting Bracket - 2" Channel w/ 1/2" Hexagonal Holes
• 8x Zinc Bolt and Nut to Tighten Crossbeam to Mounting Bracket
• 8x Zinc U Bolts with Washer and Nut for Securing Crossbeams
• 4x Galvanized U Bolts with Washer and Nut for Securing Uprights to 1.5" & 2" Tubing

• 4x Galvanized U Bolts with Washer and nut for Securing Uprights to 3" wide Tubing
• 8x Turned Eye Bolts for use with Tie Downs
• 16x Galvanized Lock Nuts for locking in Eye Bolts

4 Capacity Tall Canoe Kit - CFKIT-CAN(4T)

• 2x 48" Uprights
• 4x 80" Crossbeams with Strap Assist and End Caps
• 2x Mounting Bracket - 2" Channel w/ 1/2" Hexagonal Holes
• 8x Zinc Bolt and Nut to Tighten Crossbeam to Mounting Bracket
• 8x Zinc U Bolts with Washer and Nut for Securing Crossbeams
• 4x Galvanized U Bolts with Washer and Nut for Securing Uprights to 1.5" & 2" Tubing

• 4x Galvanized U Bolts with Washer and nut for Securing Uprights to 3" wide Tubing
• 8x Turned Eye Bolts for use with Tie Downs
• 16x Galvanized Lock Nuts for locking in Eye Bolts

* The tubing size of the trailer will determine which U Bolts will be needed to secure the uprights to the frame

Click the following link for Assembly Instructions

https://cdn.shopify.com/s/files/1/1557/3371/files/Canoe_Kayak_Kit_Assembly_Instructions.pdf

General

6 Capacity Canoe/Kayak Conversion Kit

Canoe/kayak trailer conversion kit for up to 6 canoes or 6 kayaks without plastic protective covering.

One size fits all trailer kit:

- Designed to hold 6 regular sized canoes/kayaks

- Fits on 1.5", 2", 3" rectangular and/or square tubing where applicable.

- 2 x 2 x 11 gauge upright bracing for universal fit.

- 2 x 2 x 14 gauge cross braces

This is a conversion kit only and requires a separate trailer to mount.

Click the following link for Assembly Instructions

https://cdn.shopify.com/s/files/1/1557/3371/files/Canoe_Kayak_Kit_Assembly_Instructions.pdf

Specifications

6 Capacity Normal Kayak Kit - CFKIT-KAY(6S)

• 2x 48" Uprights
• 6x 60" Crossbeams with Strap Assist and End Caps
• 6x Mounting Bracket - 2" Channel w/ 1/2" Hexagonal Holes
• 12x Zinc Bolt and Nut to Tighten Crossbeam to Mounting Bracket
• 12x Zinc U Bolts with Washer and Nut for Securing Crossbeams
• 4x Galvanized U Bolts with Washer and Nut for Securing Uprights to 1.5" & 2" Tubing

• 4x Galvanized U Bolts with Washer and nut for Securing Uprights to 3" wide Tubing
• 12x Turned Eye Bolts for use with Tie Downs
• 24x Galvanized Lock Nuts for locking in Eye Bolts

6 Capacity Tall Kayak Kit - CFKIT-KAY(6T)

• 2x 60" Uprights
• 6x 60" Crossbeams with Strap Assist and End Caps
• 6x Mounting Bracket - 2" Channel w/ 1/2" Hexagonal Holes
• 12x Zinc Bolt and Nut to Tighten Crossbeam to Mounting Bracket
• 12x Zinc U Bolts with Washer and Nut for Securing Crossbeams
• 4x Galvanized U Bolts with Washer and Nut for Securing Uprights to 1.5" & 2" Tubing

• 4x Galvanized U Bolts with Washer and nut for Securing Uprights to 3" wide Tubing
• 12x Turned Eye Bolts for use with Tie Downs
• 24x Galvanized Lock Nuts for locking in Eye Bolts

6 Capacity Normal Canoe Kit - CFKIT-CAN(6S)

• 2x 60" Uprights
• 6x 80" Crossbeams with Strap Assist and End Caps
• 6x Mounting Bracket - 2" Channel w/ 1/2" Hexagonal Holes
• 12x Zinc Bolt and Nut to Tighten Crossbeam to Mounting Bracket
• 12x Zinc U Bolts with Washer and Nut for Securing Crossbeams
• 4x Galvanized U Bolts with Washer and Nut for Securing Uprights to 1.5" & 2" Tubing

• 4x Galvanized U Bolts with Washer and nut for Securing Uprights to 3" wide Tubing
• 12x Turned Eye Bolts for use with Tie Downs
• 24x Galvanized Lock Nuts for locking in Eye Bolts


Click the following link for Assembly Instructions

https://cdn.shopify.com/s/files/1/1557/3371/files/Canoe_Kayak_Kit_Assembly_Instructions.pdf

This kit contains all of the materials necessary to mount a bunk on one of our canoe or kayak trailers. The kit contains:

2 – 3/8”-16 x 2.06” x 2.88” Zinc U-Bolt
2 – 4" x 1" x .25" Zinc Flat Plate
2 – Galvanized Angular Swivel Bracket
4 – 3/8"-16 Serrated Zinc Flange Nut

4 – 5/16" x 1-1/2″ Galvanized Hex Head Lag Screw
