192″ Black Flex Hose Male-Male Brake Line - Dexter

This item is optional on select PT-1618 and PT-1820 models only.

For use with:

– Banjo Fitting Base
– Square Banjo Fitting Bolt
– Black O-Ring
– Copper Banjo Fitting Washer

TIE DOWN MODEL: #46238-192

MODEL: CFBRKELINE-192(BLK)

Used on

General

192″ Grey Poly Flex Male-Male Brake Line - Dexter

This item is optional on select PT-1618 and PT-1820 models only.

For use with:

– Banjo Fitting Base
– Square Banjo Fitting Bolt
– Black O-Ring
– Copper Banjo Fitting Washer

TIE DOWN MODEL: #46219-192

MODEL: CFBRKELINE-192(GREY)

Used on

General

240″ Grey Poly Flex Male-Banjo Brake Line - Dexter

This item is used for brake lines on PT-2224 models and for those Axles/Trailers manufactured April 2023 and After only.

For use with:

– Banjo Fitting Base
– Square Banjo Fitting Bolt
– Black O-Ring
– Copper Banjo Fitting Washer

TIE DOWN MODEL: #46219-240

MODEL: CFBRKELINE-240B(GREY-0423)

Used on

PT-2224

General

288″ Black Flex Hose Male-Banjo Brake Line - Dexter

This item is used for brake lines on select PT-2426 models only.

For use with:

– Banjo Fitting Base
– Square Banjo Fitting Bolt
– Black O-Ring
– Copper Banjo Fitting Washer

TIE DOWN MODEL: #46238-288

MODEL: CFBRKELINE-288(BLK)

Used on

PT-2426

General

288″ Grey Poly Flex Hose Male-Banjo Brake Line - Dexter

This item is used as a brake line on PT-2426 models only.

For use with:

– Banjo Fitting Base
– Square Banjo Fitting Bolt
– Black O-Ring
– Copper Banjo Fitting Washer

TIE DOWN MODEL: #46223-288

MODEL: CFBRKELINE-288B(GREY)

Used on

PT-2426

General

3/8" Black Cable Clamp for Brake Lines

This item is secured onto the axle w/ use of a 12 x 3/4″ Zinc Hex Washer Head Tek#3 Screw. The item is used for securing all brake lines to axles on Pontoon Boat Trailer models w/ Brakes.

MODEL: CFBRKECBLCLAMP

Used on

General

3500 lb Hydraulic Disc Brake Trailer Axle w/ Hubs and Springs, Galvanized

*This Item Is Not Shipped! Only Available For Local Pickup*

This item is used on all tandem, and single axle brake setup pontoon trailers.

Materials Include:

1 - 80.375" x 2" x 2" x .17" Gauge Galvanized Axle Tubing

2 - Galvanized 5-Bolt Hub Assembly

2 - 3-Leaf Double Eye Springs (1850 lb)

1 - 7000# Galvanized Tie Plate Kit

1 - Vented Rotor Disc Brake Kit

- It can be mounted to a Single Axle Pontoon Boat Trailer Fender with a Pontoon Boat Trailer Single Axle Mounting Kit.

- Two of them can be mounted to Tandem Axle Pontoon Boat Trailer Fenders with a Pontoon Boat Trailer Tandem Axle Mounting Kit

**Some states require brakes on all axles and/or wheels. please refer to local laws when placing your order. It is up to the individual dealer to stay within the guidelines as set by the legal authorities.

MODEL: CFAXLE3500G(DISC)-PT

Specifications

Tubing: 2" Galvanized Square Axle

Load Rating: 3500 lb

Hub Face: 87"

Spring Center: 74"

Overall Length: 92"

Bearing Size: 1-3/8" x 1-1/16"

Optional On

General

64″ Grey Flex Hose Banjo-Banjo Brake Line - Dexter

This item is used to connect two Aluminum E-Coat Caliper Assemblies on Tandem Axle Pontoon Boat Trailer models.

For use with:

Used on

General

Tie Down 7/16" Diameter x 2.593 Stainless Steel Slider Pin

This item is used for mounting a Tie Down caliper to a 9.6" vented rotor. Stainless steel caliper slide pins are easily accessible with hex heads for quick removal. It allows the caliper to float freely and insures proper alignment during installation. It fits all vented rotor calipers.

MODEL: CFAXLE-PIN(CALIPER-SS)

MPN: TDE 12114 or Dexter 007-692-00

Used on

General

7/16"-14 Thread UNC x 1-1/4" Grade 5 Caliper Mounting Bolt, Zinc-Plated

Four of these are used to mount the Galvanized Caliper Mounting Bracket to the Brake Flange on all Trailer Models with Brakes prior to 2023.

MODEL: CFAXLE-BLT(CALPRBRKT-2125X-Z)

MPN: TDE 10812 or Dexter 007-10812

Used on (w/ Brakes pre-2023)

General

84″ Grey Flex Hose Banjo-Banjo Brake Line - Dexter

This item is used to connect two Aluminum E-Coat Caliper Assemblies on Tandem Axle Pontoon Boat Trailers.

MODEL: CFBRKELINE-84BB(GREY)

Used on

General

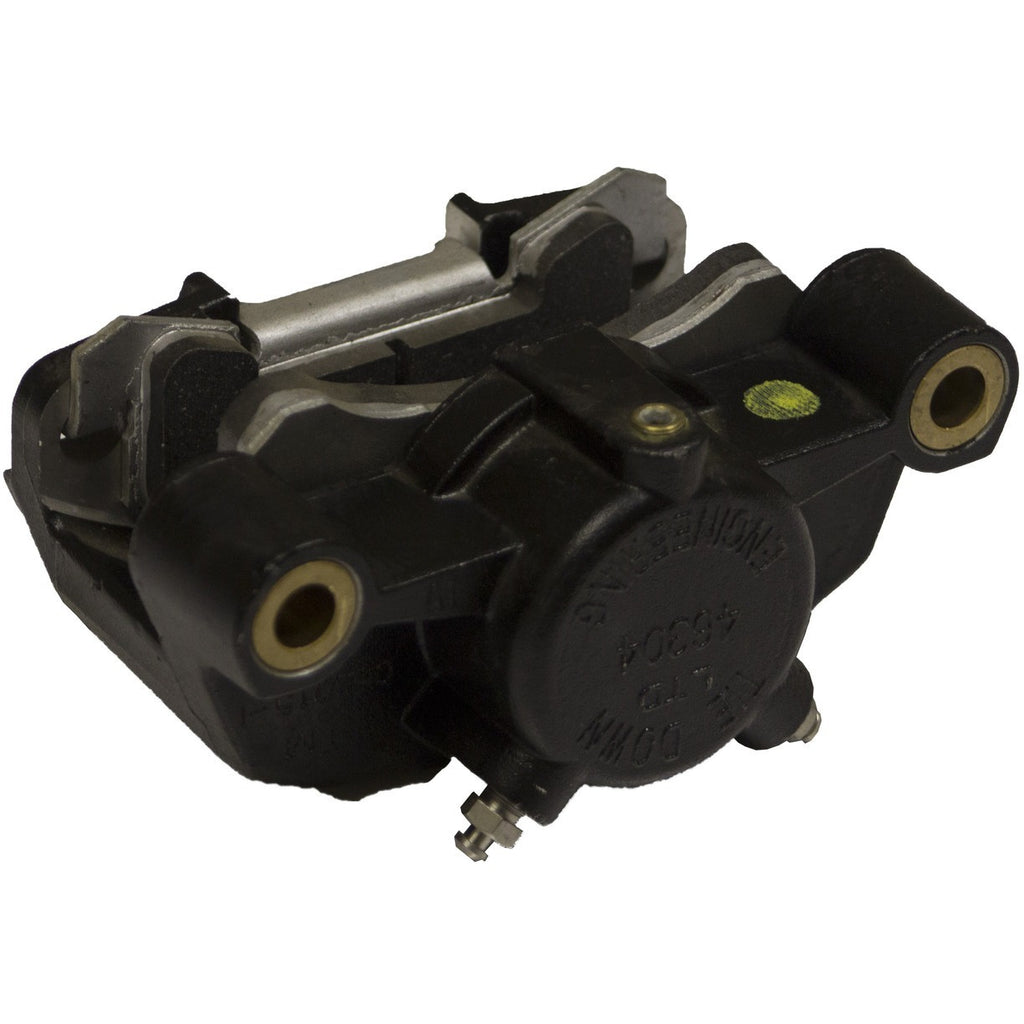

Aluminum E-Coat Caliper Assembly - Dexter

This item is a Tie Down/Dexter Aluminum E-Coat Caliper Assembly used on all Pontoon Boat Trailer models w/ Brakes prior to 2023 on 3500 lb Hydraulic Disc Brake Axles.

Materials Include

2 - 2" Pistons

2 - Brake Caliper Bleeder Valves

1 - Brass Elbow

2 - Organic Pads w/ Dacromet Backs. .

MODEL: CFAXLE-CALIPER(AL)

MPN: TDE 46304AP or Dexter 089-46304A

Used on (w/ Brakes, pre-2023)

General

Tie Down Stainless Steel Caliper Bleeder Valve

This item is used on all TIE DOWN Aluminum E-Coat Caliper Assemblies. This item has a 1/8"-27 Stainless Steel Bleed Port.

TIE DOWN MODEL: #12114

MODEL: CFBRKE-BLEEDER

Used on

General

Brass Banjo Brake Fitting Base

This item is used in conjunction with a banjo fitting bolt, a Black O-Ring and a Copper Washer for brake line quick connect.

For use with:

– Copper Banjo Fitting Washer

TIE DOWN MODEL: #11348

MODEL: CFBRKE-BASEBANJO

General

Brass Banjo Fitting Bolt for (Round) Banjo-fitted Brake Lines

This item is used in conjunction with 64" Grey Flex Banjo-Banjo Brake Lines, O-Rings and Copper Banjo Fitting Washers to connect Aluminum E-Coat Caliber Assemblies on all tandem axle pontoon trailer models.

For use with:

– Copper Banjo Fitting Washer

MODEL: CFBRKE-BLTBANJO(RD)

Used on

General

Coupler Safety Pin - for TDE 660 & 850 Actuators

1/16-1/8IN 7x7x12.5 w/ 5/16 Safety Cable Pin. Used for Model TDE 660E and TDE 850E Actuators to Prevent Latch from Coming Undone

MODEL: CFCPLR-PIN

MPN: TDE 50301

General

Tie Down Galvanized Caliper Mounting Bracket for 9.6" Integral Rotor

This item is used with 7/16"-13 UNC x 1-1/4" Grade 5 Zinc Bolts to mount an Aluminum E-Coat Caliper Assembly for a 9.6" Integral Rotor to a brake flange on a 2" Square Axle. It is used on all Pontoon Boat Trailer models with Brakes.

MODEL: CFAXLE-BRKTMNT(CALIPER-1750-G)

MPN: TDE 44676G or Dexter 090-44676G

Used on

General

Copper Banjo Brake Fitting Washer

This item is used in conjunction with 64" Grey Flex Hose Banjo-Banjo Brake Lines, Brass Banjo Fitting Bolts, and Black O-Rings to connect Aluminum E-Coat Caliber Assemblies on all tandem axle pontoon trailer models.

For use with:

– 64″ Grey Flex Hose Banjo-Banjo Brake Lines
– Brass Banjo Fitting Bolts
– Black O-Rings

MODEL: CFBRKE-WSHRBANJO

Used on

General

Model 66 Brake Hose Cover

This item attaches to Tie Down "Model 66" 6600 Lb Capacity Hydraulic Disc Brake Actuator w/ 2" Coupler to protect the Brake Hose. Comes with 2 Small Screws.

MODEL: CFBRKECOVER

Used on

General

Model 660E 2" Ball 6600 lb GVWR Capacity Hydraulic Disc Brake Actuator Coupler; 660 lb Tongue Load (Includes Disc Brake Solenoid) - TDE/Dexter

This item is used with Hydraulic Disc Brake Setups on every Pontoon Boat Trailer model with Disc Brakes pre-February 2025. This item is mounted to Pontoon Boat Trailer models with an Actuator Mounting Kit

MODEL: CFCPLR-BRAKE(DISC-660)

Used on
